SR05-D2A2 Solar Radiation Sensor

Updated:2025-03-13

Brand: Hukseflux
Model：SR05-D2A2
Description: SR05 series is the most affordable range of pyranometers meeting ISO 9060 second class requirements. SR05 measures solar radiation received by a plane surface, in W/m2, from a 180 ° field of view angl
Data download

Feedback
WeChat

QQ

Online Service

Product Details

SR05-D2A2 Solar Radiation Sensor： User's Manual Datasheet

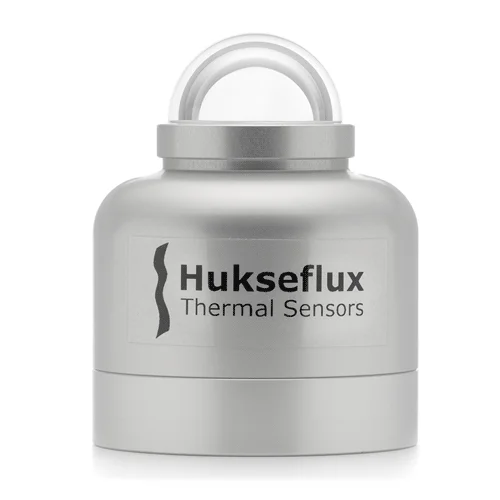

SR05 series is the most affordable range of pyranometers meeting ISO 9060 second class requirements. SR05 measures solar radiation received by a plane surface, in W/m2, from a 180 ° field of view angle. It is ideal for general solar radiation measurements in (agro-)meteorological networks and PV monitoring. The pyranometer is easy to mount and install, in particular with SR05’s ball levelling mechanism. Various outputs are available, both digital and analogue, for ease of integration. Version SR05-D2A2 offers Modbus over TTL and 4-20 mA output.

SR05 pyranometer mounting and leveling

Optionally SR05 has a unique ball levelling mechanism and tube mount for easy mounting and levelling on a (non-)horizontal surface or tube. As is shown in the images.

Design and Output

SR05 pyranometer employs a thermopile sensor with black coated surface, one dome and an anodised aluminium body with visible bubble level. SR05 has a variety of industry standard outputs, both digital and analogue:

SR05-D1A3: digital sensor with Modbus over RS-485 and analogue 0-1 V output

SR05-D2A2: digital sensor with Modbus over TTL and analogue 4–20 mA output

SR05-A1: analogue sensor with analogue millivolt output

Suggested Use

general solar radiation measurements

(agro-)meteorological networks

PV power plant monitoring

Areas of Application

Meteorology / surface energy flux measurement

Solar energy / PV system performance monitoring

SR05-D2A2 Solar Radiation Sensor Specifications：

Measurand	hemispherical solar radiation
ISO 9060:2018 classification	class C (second class)
IEC 61724-1:2017 compliance	class C
Application	PV monitoring commercial and utility scale, PV monitoring small sized
Heater	no
Output	0-1 V
Calibration uncertainty	<1.8% (k=2)
Calibration traceability	to WRR
Spectral range (wavelength)	285 to 3000 ×10?3 m
Rated operating temp range	-40 to +80 °C
Standard cable length	3 m
Rated operating voltage	5 to 30 VDC
Levelling	ball leveling, optionally with tube mount
Digital output	:
Communication protocol	Modbus over 2-wire RS-485
Transmission mode	RTU
Baud rates	1200, 2400, 9600, 19200, 38400 and 115200
Compatibility	IMT-Solar Si-RS485TC-T-MB; other cells upon request
Analogue output	:
Voltage output	0 to 1 V cable lengths: 10, 20 m
Version order codes	SR05-D1A3-PV, SR05-D1A3-PV-BL, SR05-D1A3-PV-TMBL
Options	? Cable lengths: 10, 20 m ? Cable lengths: 10, 20 m ? Extension cable with connector pair: 10, 20 m ? With ball levelling (-BL) ? With ball levelling and tube mount (for tube diameters 25 – 40 mm, -TMBL) ? PMF01 mounting fixture for Plane of Array installation ? Compatibility: SR05-D1A3-PV’s Modbus interface is exchangeable with IMT-Solar Si- RS485TC-T-MB PV reference cell’s interface. Other reference cells upon request.
