Remote Dust Monitor ES-642 Introducton：

user's manual

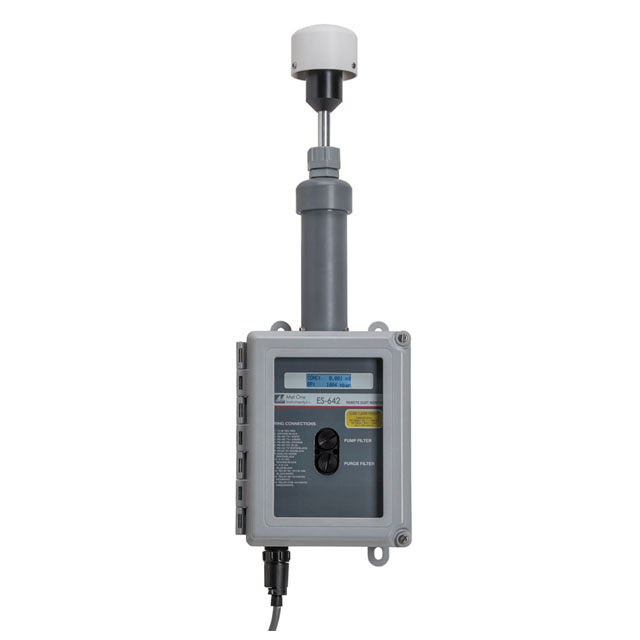

Met One Instruments’ ES-642 Remote Dust Monitor is an industrial air-quality sensor designed to provide real time particle concentration measurements in both indoor and outdoor environments.

Our ES-642 measures particulate concentration using a highly sensitive forward scatter laser nephelometer, which has a measurement range of 0 to 100 mg/cubic meter (0 to 100,000 μg/cubic meter). As supplied, the ES-642 provides TSP particulate monitoring. Optional sharp-cut cyclones are available for PM1, PM2.5, or PM10.

The ES-642’s serial and analog outputs support a wide variety of data collection systems. Serial outputs are MODBUS and basic ASCII via RS-232 or RS-485. Analog outputs include both 0-10 volts and 4-20 mA.

Remote Dust Monitor ES-642 FEATURES:

• Rugged Weatherproof Enclosure: For reliable continuous outdoor operation
• Purge Air System: Keeps optical components clean so the ES-642 can operate in adverse environments without performance degradation.
• Automatic Zero Calibration: Reduces long term measurement drift by automatically adjusting the zero value each hour.
• Controlled Inlet Heater: Active inlet humidity control to reduce measurement errors.
• Front Panel LCD Display: Provides information about particulate concentration, flow rate and instrument status.
• Flexible Mounting Hardware: Optional mounting bracket for wall or 2” vertical mast or for vertical mast diameters up to 4.7 inches (120 mm).

Remote Dust Monitor ES-642 APPLICATIONS:

1. HVAC
2. Public & Workplace Monitoring
3. Industrial Hygiene
4. Mining & Ore Processing
5. Industrial Facility & Process Monitoring
6. Ambient Monitoring
7. Dust Monitoring
8. Smart Cities
9. Environmental Monitoring
10. Tunnel Monitoring
11. Fenceline Monitoring
12. Emergency Response
