HTR02 Series Heater

Updated:2025-03-13

Brand: Hukseflux
Model: HTR02
Description: Hukseflux, the world market leader in heat flux sensors, simplifies heat flux sensor performance checks. HTR02 series is a heater with a cable with 4-wires, a known surface area and electrical resista
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Overview of HTR02 series heaters：

User Manual Instructions

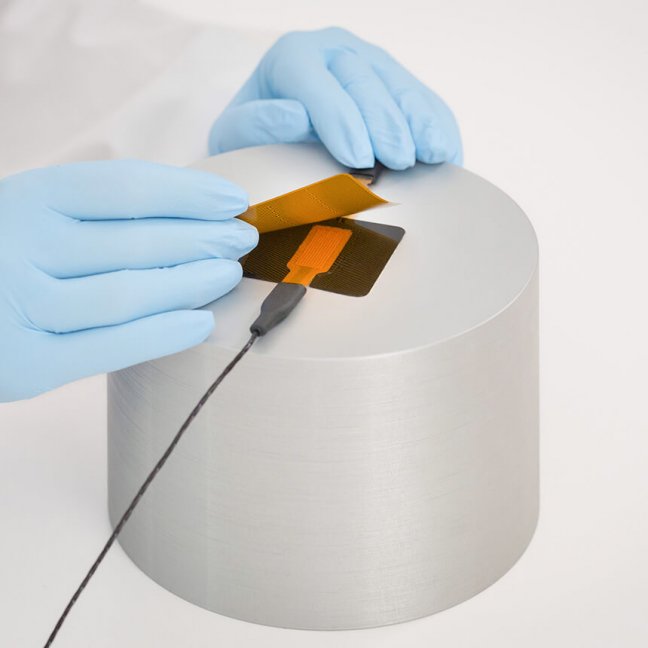

Measuring heat flux, users may wish to regularly check their sensor performance. A quick check is now possible with HTR02 series plus some accessories that most laboratories will have in-house. The HTR02 series heaters have a well characterized a traceable surface area and electrical resistance.

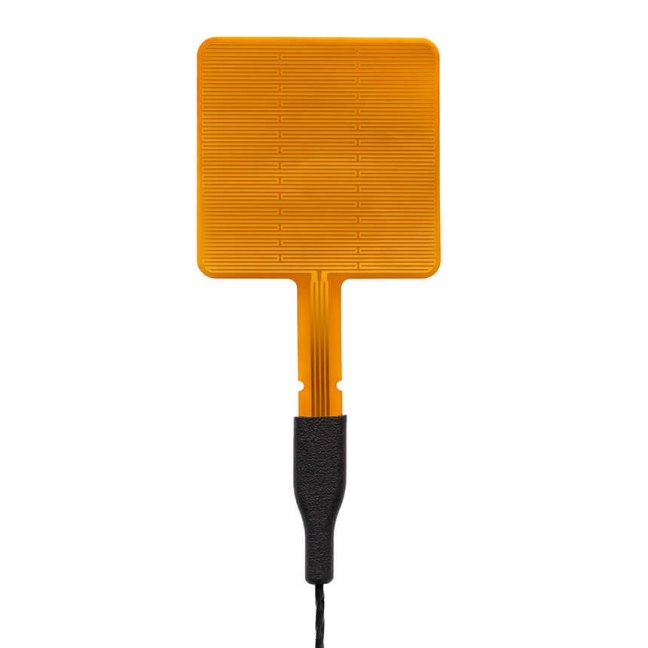

HTR02 series is a foil heater. Either it can be used in combination with foil heat flux sensors such as FHF05 series for test purposes or as a general-purpose heater.

HTR02 series heater unique features and benefits：

1、makes it possible to perform a simple test

2、guarantees sensor stability

3、matches all models of FHF05 series heat flux sensors

4、HTR02 series heaters have a well characterized and traceable surface area and electrical resistance

5、supplied with product certificate stating surface area in [m2] and heater resistance in [?]

HTR02 series heater specifications：

Power supply voltage	12 VDC
Effective heater area per model	：
50X50	2381 x 10?? m2
85X85	7022 x 10?? m2
Heater electrical resistance per model	：
50X50	120 Ω (nominal)
85X85	40 Ω (nominal)
Heater thickness	0.1 x 10?3 m
Outer dimensions foil per model	：
50X50	(50 x 50) x 10?3 m
85×85	(85 x 85) x 10?3 m
Rated operating temperature range – continuous use	-40 to +150 °C
Heater rated power supply	9 to 15 VDC
Standard cable length	2 m (2 x 2 wires)
Certificate	supplied with a certificate stating surface area in [m2] and heater resistance in [Ω]
Requirements for testing	metal heat sink > 1 kg; power supply 12 VDC; 0.2 A; insulation material; voltage measurement; contact material such as glycerol or toothpaste
Options	?with 5 or 10 m cable length ?with 2, 5 or 10 m cable length ?with a separate cable in 2, 5 or 10 m
