Datasheet(CN) Datasheet(EN) User's Manual

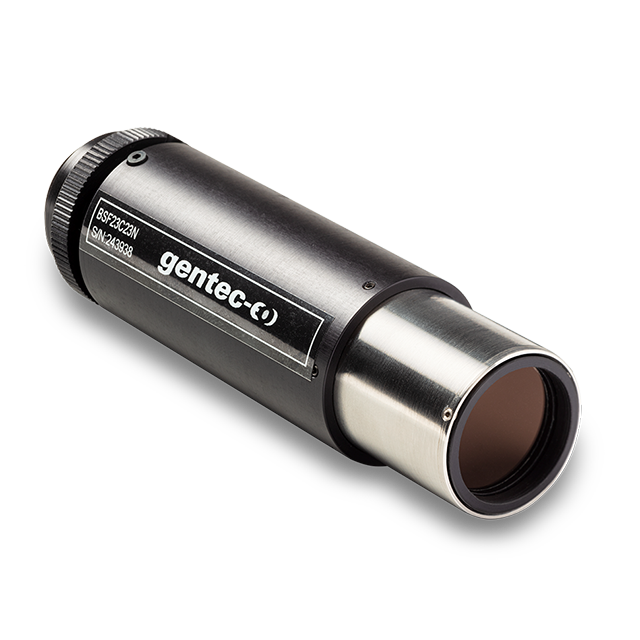

Gentec-EO UV converter for BEAMAGE: 23 mm aperture, various crystal types available.
Key features
Convert UV light to visible
The BSF series transforms wavelengths contained between X-rays and 400 nm to visible and near-IR wavelengths.
Image larger beams
The magnification properties allow you to image beams that are larger than the sensor.
CONTROL THE EXPOSURE
Built with an iris at the output port for a control of the exposure on the CMOS sensor.
Ready to use within minutes
Removable extension tube that is easily fixed onto the entrance port of the BEAMAGE camera.
Specifications
| Measurement capabilities | |
| Spectral range | 10 - 535 nm |
| Maximum beam size | 23 mm ? |
| Pixel multiplication factor (PMF) | 1.4 |
| Minimum measurable beam | 79 μm |
| Maximum repetition rate | Depends on crystal type: from 25 Hz to 1 MHz |
| Crystal type | 4 types available |
| Physical characteristics | |
| Dimensions | 35? X 97D mm |
| Weight | 0.21 kg |
| Clear aperture | 23 mm |
