Datasheet(CN) Datasheet(EN) User's Manual

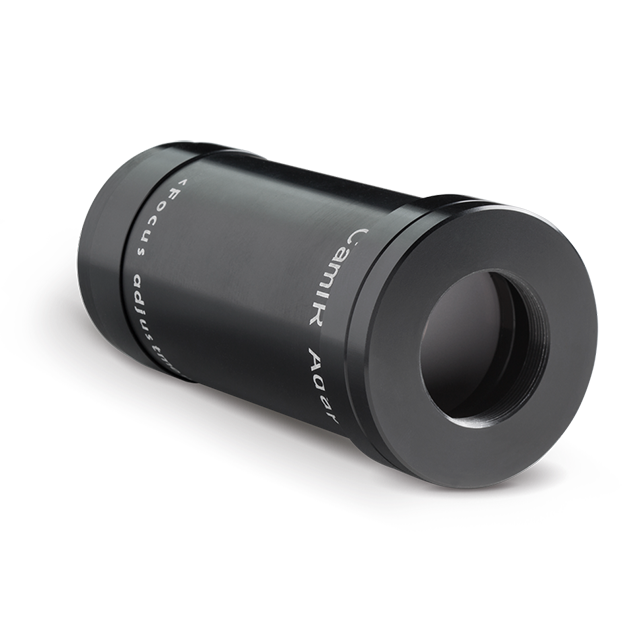

Gentec-EO IR Adaptor to expand the BEAMAGE range to near-IR telecom wavelengths. Must be purchased with BEAMAGE for in-factory tuning.
Key Features
Convert IR light to visible
The IR adaptor converts wavelengths between 1495 nm and 1595 nm to shorter wavelengths between 950 nm and 1075 nm.
Image larger beams
The magnification properties allow you to image beams that are larger than the sensor.
HIGH QUALITY IMAGING
Built with a high quality coated anti-reflection input window that allows wavelength conversion with low distortion and maximum image resolution.
Ready to use within minutes
Removable and easily C-mounted onto the entrance port of the BEAMAGE camera.
Specifications
| Measurement capabilities | |
| Spectral range | 1495 - 1595 nm |
| Maximum beam size | 19 mm |
| Pixel multiplication factor (PMF) | 3.29 |
| Minimum measurable beam | 230 μm |
| Linearity | Non-linear, IR converted output ∝ input intensity^1.41 |
| Distortion | -1.0% barrel distortion (inverted image) |
| Damage thresholds | |
| Damage thresholds | 1 W/cm2 |
| Physical characteristics | |
| Dimensions | 46? X 97D mm |
| Weight | 0.21 kg |
