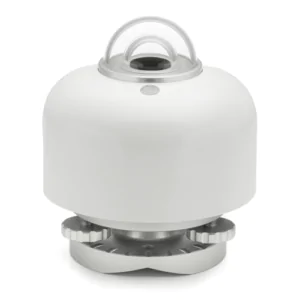

SR15-D2A2 Digital First Class Pyranometer

Updated:2025-03-13

Brand: Hukseflux
Model：SR15-D2A2
Description: SR15 digital pyranometer series is an all-digital range of solar radiation sensors applied in general high-accuracy observations. SR15 pyranometers comply with the “first class” specifications accordi
Data download

Feedback
WeChat

QQ

Online Service

Product Details

SR15-D2A2 Digital First Class Pyranometer Describe： User's Manual Datasheet

SR15-D2A2 Digital First Class Pyranometer

Calibration of SR15 pyranometer has been improved; our latest calibration method results in an uncertainty of the sensitivity of 1.8 %, compared to typical uncertainties of higher than 2.8 % for this pyranometer class. SR15’s response time is < 10 s, a significant improvement relative to earlier sensors and competitors.

Use as Sunshine Duration Sensor

WMO has approved the “pyranometric method” to calculate sunshine duration from pyranometer measurements in WMO-No. 8, Guide to Meteorological Instruments and Methods of Observation. This implies that SR15 may be used, in combination with appropriate software, to estimate sunshine duration. This is much more cost-effective than using a dedicated sunshine duration sensor. Ask for our application note.

Suggested Use

system performance monitoring

General solar resource monitoring

Indoor simulated solar testing

Meteorological networks

Areas of Application

Meteorology / surface energy flux measurement

Solar energy / PV system performance monitoring

Accessories

mounting fixture

SHR02 shadow ring

PMF01 mounting fixture

PMF02 mounting fixture

CMF01 mounting fixture

TEMPOS Thermal Performance Analyzer Specifications：

Measurand	hemispherical solar radiation
ISO 9060:2018 classification	Spectrally flat Class B (first class)
IEC 61724-1:2017 compliance	Class C
Application	National Meteorological NetworksPV monitoring commercial and utility scalePV monitoring small sized meteorology / climatology, other
Heater	No
Output	4-20 mA current loopModbus TTL
Calibration uncertainty	< 1.8 % (k = 2)
Calibration traceability	to WRR
Spectral range	285 to 3000 x 10?? m
Response time	< 10 s
Zero offset a	5 W/m2 unventilated
Rated operating temperature range	-40 to +80 °C
Temperature response	< ± 2 % (-10 to +40 °C)
Standard cable length	5 m
Levelling	optional spring-loaded levelling, with or without tube mount
Communication protocol	Modbus over TTL
Transmission mode	RTU
On-board heater	Not included
Analogue output	4-20 mA current loop
Version order codes	SR15-D2A2, SR15-D2A2-LM01, SR15-D2A2-TLM01
Options	? Spring-loaded levelling; practical for easy mounting, levelling and instrument exchange on flat surfaces (LM01) ? Tube levelling mount with set of bolts (TLM01) ? PMF01 bracket for tilted installations ? Longer cable; 10 and 20 metres length ? 20 metres extension cable with 2 connectors
