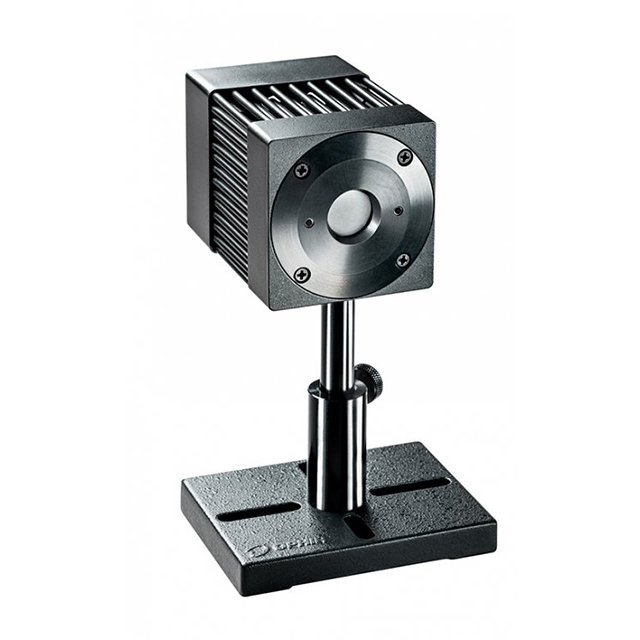

F80(120)A-CM-17 7Z07103 Laser Measurement Sensor

Updated:2025-03-13

Brand: Ophir
Model: F80(120)A-CM-17
Description: The F80(120)A-CM-17 is a thermal power/energy laser measurement sensor with a high damage threshold for high repetition rate pulsed lasers. It has a 17.5mm aperture and can measure power from 100mW to
Data download

Feedback
WeChat

QQ

Online Service

Product Details

F80(120)A-CM-17 7Z07103 Laser Measurement Sensor Description：

The F80(120)A-CM-17 is a thermal power/energy laser measurement sensor with a high damage threshold for high repetition rate pulsed lasers. It has a 17.5mm aperture and can measure power from 100mW to 80W continuously and to 120W intermittently. The high damage threshold CM absorber covers the spectral range from 0.248 to 9.4μm and has a damage threshold of 35kW/cm2 for high repetition rates. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

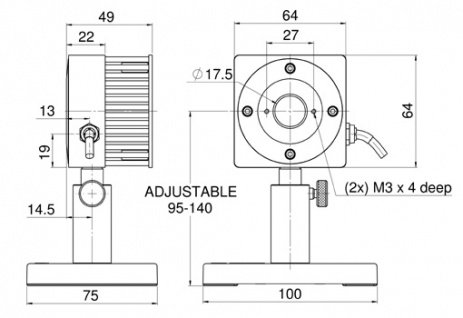

F80(120)A-CM-17 7Z07103 Laser Measurement Sensor Drawing：

F80(120)A-CM-17 Drawing

F80(120)A-CM-17 7Z07103 Laser Measurement Sensor Specification：

Absorber Type	CM
Aperture	?17.5mm
Spectral Range	0.248μm-9.4μm
Power Range	100mW-120W
Energy Range	50mJ-200J
Dimensions	64 L x 64 W x 93 D (mm)
Max Pulse Energy	200J
Max Average Power Density	35kW/cm2
Response Time	2 s
Max Energy Density (for <100ns)	0.7J/cm2
Max Energy Density (for 2ms)	45J/cm2
Max Average Power	120W
