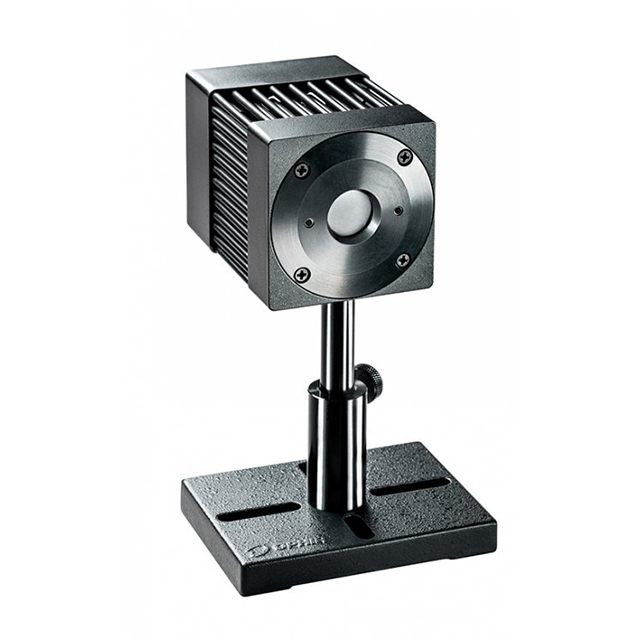

F150(200)A-CM-16 P/N7Z07107 Laser Measurement Sensor

Updated:2025-03-13

Brand: Ophir
Model: F150(200)A-CM-16
Description: The F150(200)A-CM-16 is a thermal power/energy laser measurement sensor with a high damage threshold for high repetition rate pulsed lasers. It has a 16mm aperture and can measure power from 300mW to
Data download

Feedback
WeChat

QQ

Online Service

Product Details

F150(200)A-CM-16 P/N7Z07107 Laser Measurement Sensor Introduction：

The F150(200)A-CM-16 is a thermal power/energy laser measurement sensor with a high damage threshold for high repetition rate pulsed lasers. It has a 16mm aperture and can measure power from 300mW to 150W continuously and to 200W intermittently. The high damage threshold CM absorber cover the spectral range from 0.248 to 9.4μm and has a damage threshold of 35kW/cm2 for high repetition rates. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

F150(200)A-CM-16 P/N7Z07107 Laser Measurement Sensor Drawing：

F150(200)A-CM-16 Drawing

F150(200)A-CM-16 P/N7Z07107 Laser Measurement Sensor Specification：

Absorber Type	CM
Aperture	?16mm
Spectral Range	0.248μm-9.4μm
Power Range	300mW-200W
Energy Range	50mJ-200J
Dimensions	64 L x 64 W x 93 D (mm)
Max Pulse Energy	200J
Max Average Power Density	35kW/cm2
Response Time	3 s
Max Energy Density (for <100ns)	0.7J/cm2
Max Energy Density (for 2ms)	45J/cm2
Max Average Power	200W
