AMI Overview

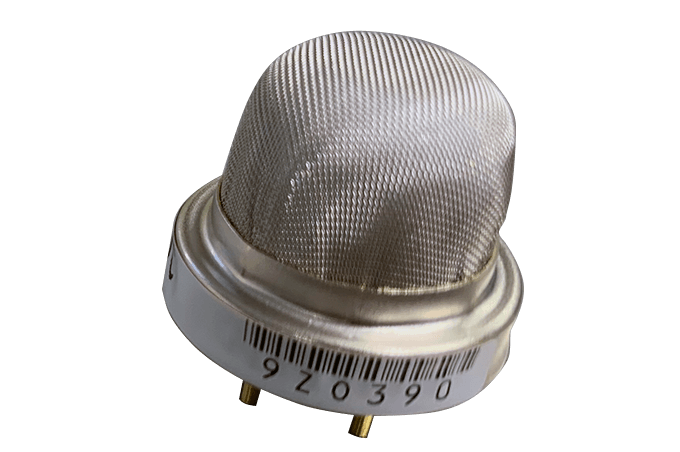

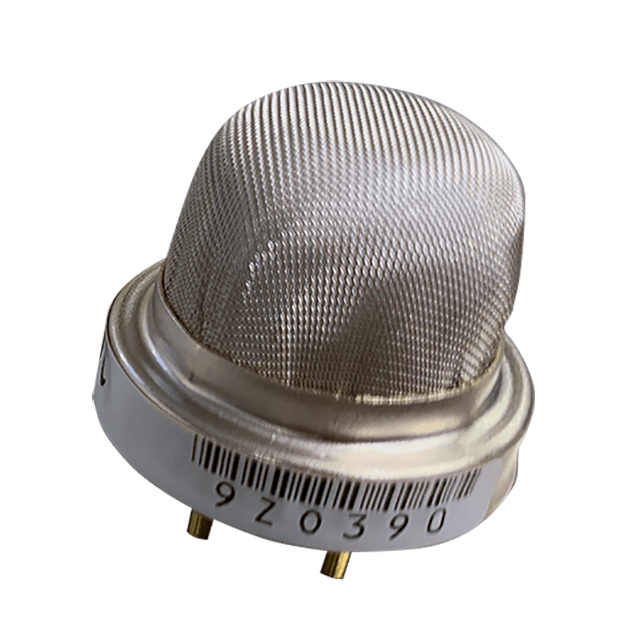

AMI’s zirconium oxide sensors are an extremely stable, have a very long service life, and are not affected by barometric or temperature changes. They are an excellent option for measuring percent levels of oxygen in inert atmospheres, such as the amount of oxygen in the air of an enclosed space. In this application AMI’s zirconium oxide sensor will last for many years and require minimal calibration. These sensors should not be used for measurement of oxygen in flammable gasses and are not designed for low ppm levels of oxygen.
Zirconium oxide sensors in AMI analyzers are not field replaceable. When the time comes for a new sensor in your analyzer this work can be quickly performed by our technicians at the AMI factory.
|
|
| SENSOR TYPE | ZIRCONIUM OXIDE |
| MEASUREMENT RANGE |
0 – 25.0% 0 – 50.0% 0 – 95.0% depending on AMI analyzer model |
|
AMBIENT OPERATIONAL TEMPERATURE RANGE |
0°F to 130°F (17.8°C to 54.4°C) |
| SENSITIVITY | 0.05% of Oxygen |
