WindUltra Compact Ultrasonic Anemometers Description：

Product Manual Datasheet

WindUltra compact ultrasonic anemometers have been developed for use in a wide range of applications. WindUltra is Gill’s smallest and lightest anemometer. It can be used in land or marine applications for stand-alone measurements or as part of a larger measurement or monitoring system. WindUltra has an extremely robust design, accurate measurement capability, and is easy to install and use.

Compact, high quality ultrasonic wind sensors

High accuracy, space efficient design

Easy to configure and install

High IP rating and built-in heating

Key Features

High quality measurements up to 75m/s (270km/h) with full range accuracy

Innovative mounting options for easy installation

Extremely tough, durable & submersible - IP69k

Small, lightweight design (sensor 150g, 1" pole mount 120g)

Low power consumption

Integral heating for operation to -40°C

Range of industry standard output protocols including MODBUS

Comprehensive support includes software and technical advice

Typical Applications

Wind measurements in extreme environments (including dust & sand)

Wind energy farms

Drones/UAVs

Uncrewed surface vessels (USVs)

Harsh marine applications

Pollution plume monitoring

Tunnel and industrial ventilation monitoring

Airflow measurement for clean rooms

IoT, big data and smart city applications

Integration into broader weather measurement systems

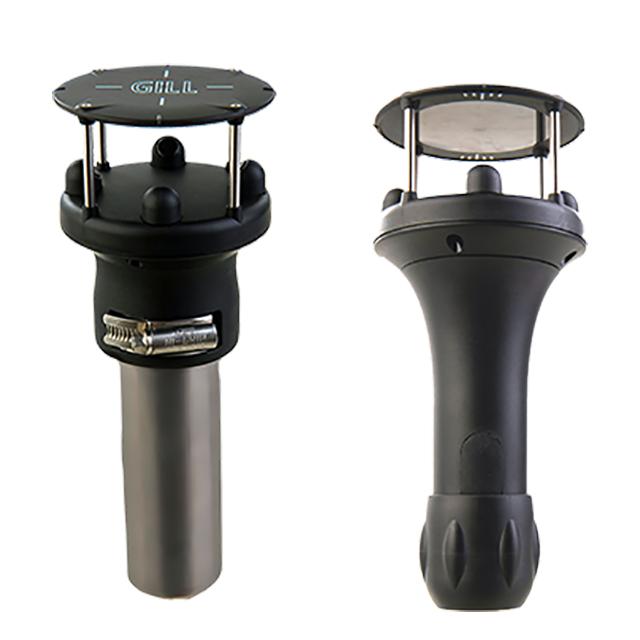

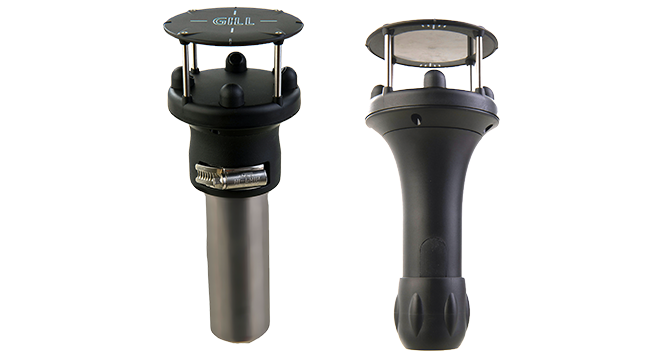

WindUltra

Two options for rapid alignment & installation - 1" (25-26mm) and 1.75-2" (44-51mm) pole mounts

0-75 m/s (270 km/h) wind speed

0-360° wind direction

RS485, MODBUS, NMEA and SDI-12 outputs

Corrosion free construction

Environmental protection to IP66, IP68 and IP69k

270g with 1" pole mount
