WindMaster 3 axis ultrasonic anemometer - full series

User 's Manual

WindMaster

• 20Hz (32Hz option) data output rate
• 0-50m/s (180 km/h) wind speed
• Optional analogue inputs and outputs available
• Robust, lightweight aluminium/carbon fibre construction
• ?? ?
• ?? ?
• ?? ?

datasheet

WindMaster Pro

• 32Hz data output rate
• 0-65m/s (234 km/h) wind speed
• Optional analogue inputs and outputs plus PRT available
• Robust stainless steel construction
• ?? ?
• ?? ?
• ?? ?
• ?? ?
• ?? ?

datasheet

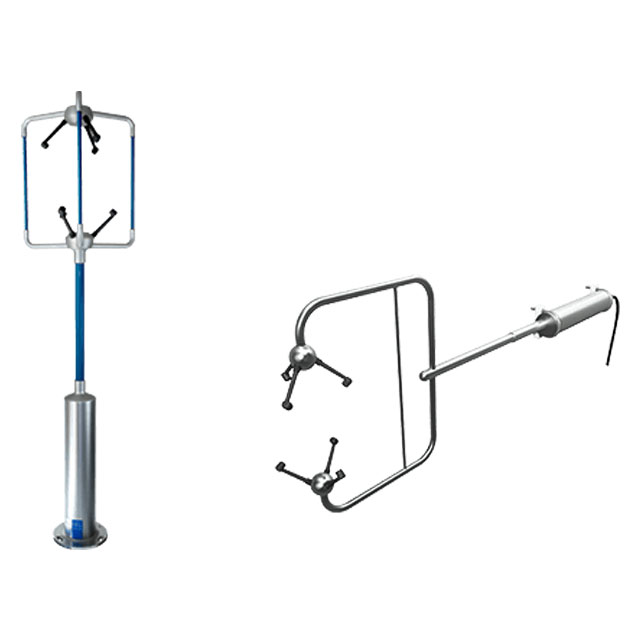

WindMaster RA

• Right-angled head for precise placement in specific installations
• 20Hz (32Hz option) data output rate
• 0-50m/s (180 km/h) wind speed
• Optional analogue inputs or outputs are available
• Robust, lightweight aluminium/carbon fibre construction

datasheet

WindMaster HS

• Horizontal head for highly accurate vertical flow analysis
• 32Hz data output rate
• 0-45m/s (162 km/h) wind speed
• Optional analogue inputs or outputs available
• Robust stainless steel construction
• ?? ?
• ?? ?

datasheet

WindMaster-Key Features

1. High quality 3-axis (3D) measurements up to 65m/s (234 km/h) dependent on model

2. Data reporting up to 20Hz with option up to 32Hz

3. 12 bit digital data with options for 14 bit digital or analogue outputs

4. Robust design and construction

5. Multiple mechanical designs support a range of applications

6. Comprehensive support includes software and technical advice

WindMaster 3-axis ultrasonic anemometers (wind sensors) - more details

Designed and manufactured by Gill Instruments in the UK, WindMaster 3-axis ultrasonic anemometers accurately and reliably measure wind speed and direction (or air flow) in three dimensions.

High performance measurement at fast output rates (up to 32Hz) allows WindMaster anemometers to provide data to inform research or provide control information to other systems such as building ventilation or unmanned vessels.

Output protocol options for the WindMaster range include RS232, RS422 & RS485 as well as current or voltage analogue output options.

Environmental protection to IP65 across all WindMaster models.

Ultrasonic technology provides accurate and reliable wind speed and direction data using solid state technology, with no moving parts, reducing the need for maintenance and making WindMaster ideal for harsh weather environments and remote locations.
