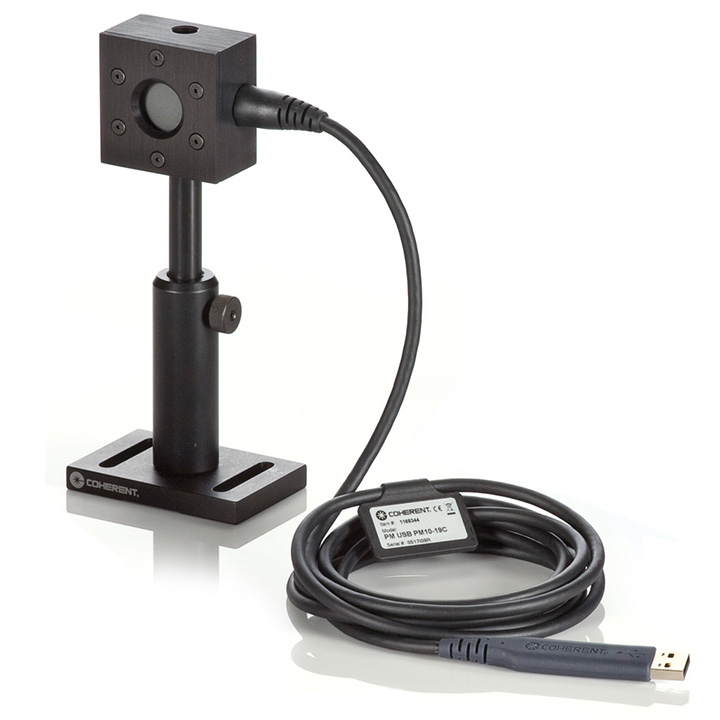

This PowerMax-USB PM150-19C sensor is a compact water-cooled laser power sensor intended for measuring lasers up to 150W with water, and up to 20W without water for short durations (up to five minutes at a time).
The sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model (PN 1098444) is available.
Compact water-cooled thermopile sensor for measuring pulsed & CW lasers between 300 mW and 150W. It can be used to measure 20W without water, intermittently, for up to five minutes. Direct USB interface.
Key Features:
300 mW to 150W range
19 mm diameter active area
Spectrally flat broadband coating
0.19 to 11 μm spectral range
Water-cooled
Direct USB interface
ISO 17025 accredited
Specifications
