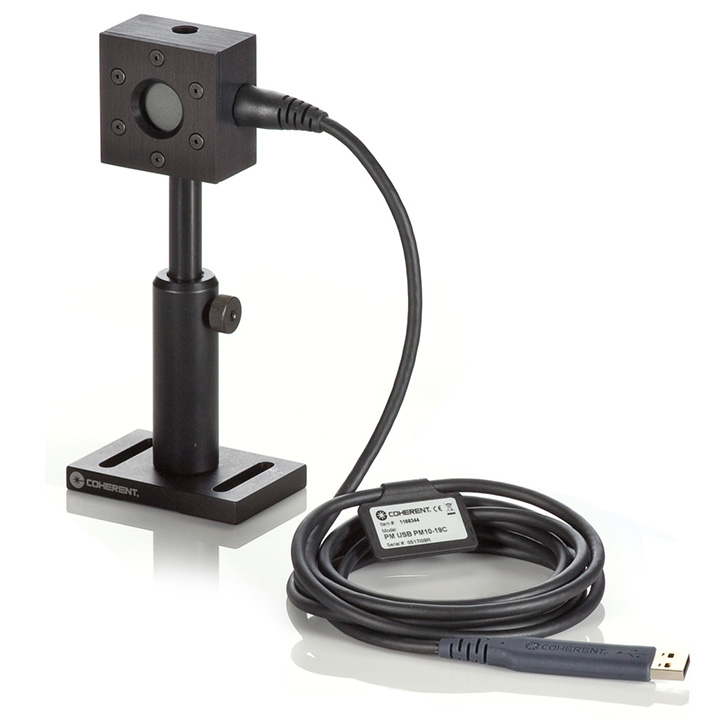

Coherent PowerMax-USB PM10-19C Compact Power Sensor

Updated:2025-03-13

Brand: Coherent
Model: PowerMax-USB PM10-19C
Description: This PowerMax-USB PM10-19C sensor is a compact water-cooled laser power sensor intended for measuring lasers up to 10W with water, and up to 5W without water for short durations (up to five minutes at
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent PowerMax-USB PM10-19C Compact Power Sensor Description：

Datasheet User's Manual

This PowerMax-USB PM10-19C sensor is a compact water-cooled laser power sensor intended for measuring lasers up to 10W with water, and up to 5W without water for short durations (up to five minutes at a time).

Compact water-cooled thermopile sensor for measuring pulsed & CW lasers between 10 mW and 10W. It can be used to measure 5W without water, intermittently, for up to five minutes. Direct USB interface.

The sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model (PN 1098397) is available.

Key Features:

10 mW to 10W range

19 mm diameter active area

Spectrally flat broadband coating

0.19 to 11 μm spectral range

Water/ Air Intermittent

Direct USB interface

ISO 17025 accredited

Specifications

Cable Type

USB

Cooling Type

Water, Air (intermittent)

Power Range

10mW to 10W

Active Area Diameter

19 mm

Detector Coating

Broadband

Noise Equivalent Power (milliwatts)

0.2

Maximum Intermittent Power (watts)(<5 minutes)

5, air-cooled

Long-Pulse Joules Range (joules)

0.5 to 10

Wavelength Range (micrometers)

0.19 to 11 μm

Maximum Power Density (kilowatts per square centimeter)

6 kW/cm2

Maximum Energy Density (millijoules per square centimeter)

600 mJ/cm2 10 ns, 1064 nm

Response Time, Speed-up On, 0% to 95% (seconds)

Window

None

Diffuser

None

Calibration Uncertainty (%)(k=2)

±2

Power Linearity (%)

±1

Spectral Compensation Accuracy (%)

±1.5

Calibration Wavelength (nanometers)

10600

Cable Length (meters)

2.5
