Datasheet User's Manual

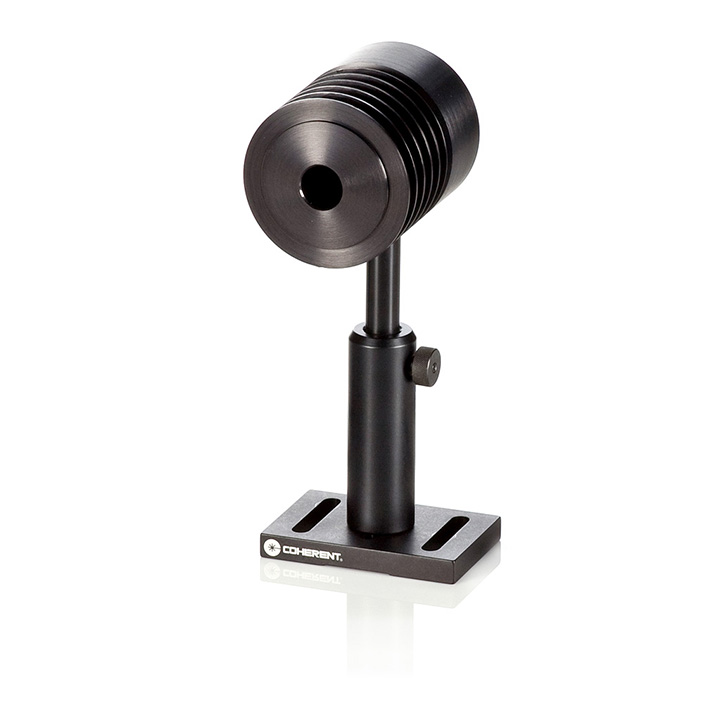

This PowerMax-USB LM-10 sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model (PN 1098304) is available.
SMA fiber adapter (PN 1098589) and FC/PC fiber adapter (PN 1098339) accessories are available.
These unique position sensing thermopiles display the position of the incident beam on the sensor disk, in addition to measuring power. This information allows the user to safely and precisely align the sensor and the beam being measured. This is particularly useful for non-visible beams.
Key Features:
10 mW to 10W range
16 mm diameter active area
Beam position measurement
Spectrally flat broadband coating
0.25 to 10.6 μm spectral range
Convective air-cooled
Fiber adapters available
Direct USB interface
ISO 17025 accredited
Specifications
