Datasheet User's Manual

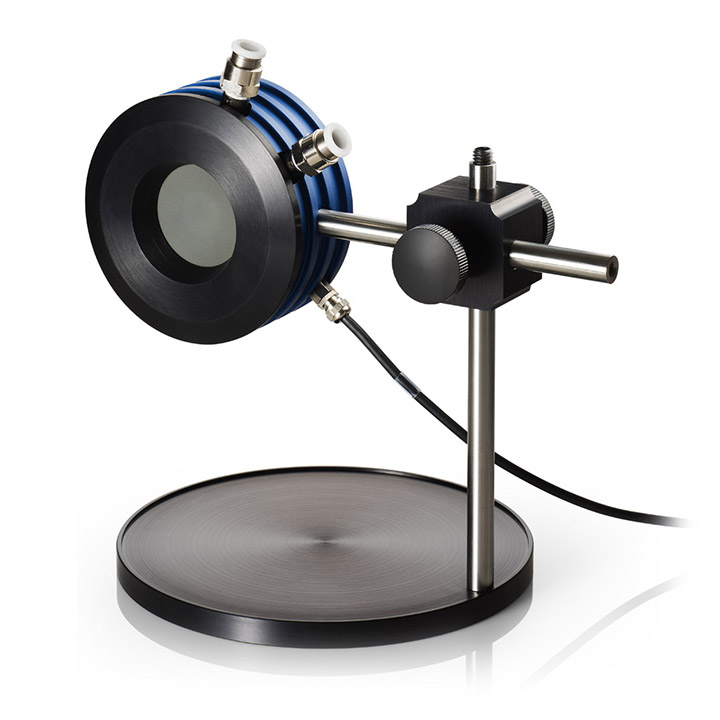

This PowerMax-RS PM1K+ sensor is a water-cooled kW laser power sensor intended for measuring lasers up to 1000W. It has a large 50 mm diameter active area, and the spectrally flat BB+ coating is highly resistant to laser damage.
The sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller.
The RS232 cable must be powered by 5 VDC. An optional external power supply (PN 1105557) is available.
Water-cooled kW thermopile sensor with BB+ coating for measuring lasers between 5W and 1000W. Direct RS232 interface
Key Features:
5W to 1000W range
50 mm diameter active area
Spectrally flat broadband BB+ coating
0.19 to 11 μm spectral range
Direct RS232 interface
Water-cooled
ISO 17025 accredited
Specifications
