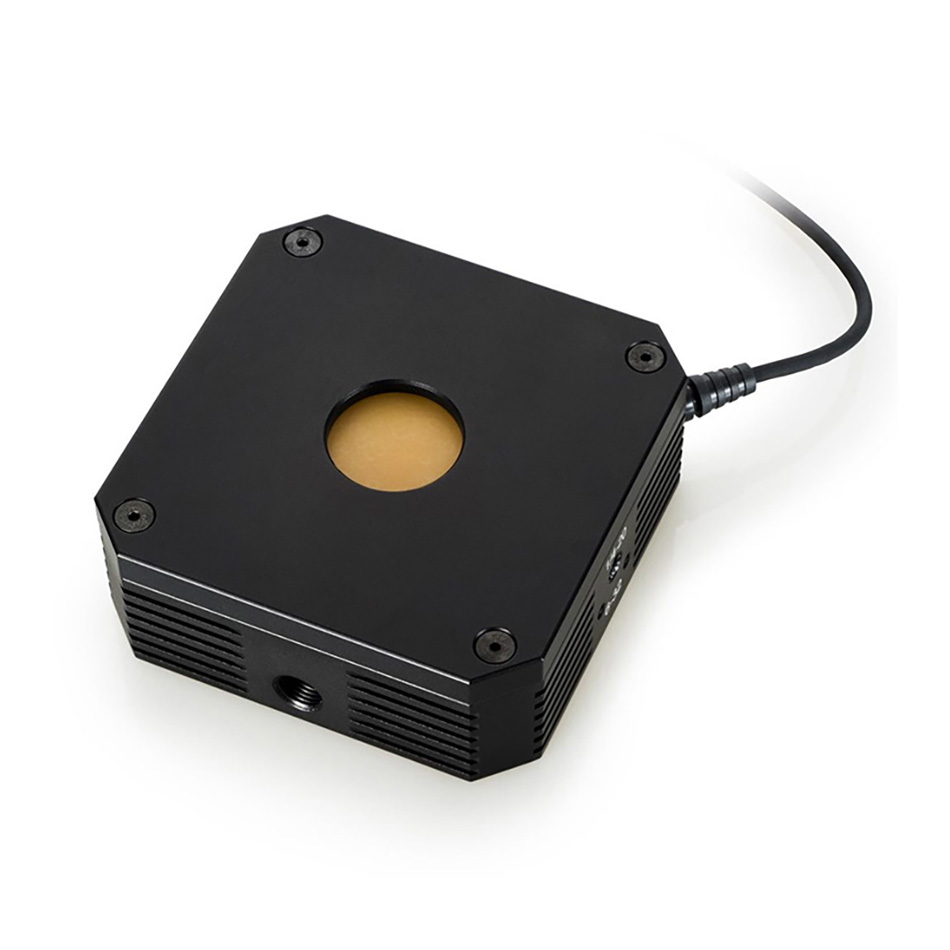

Coherent PowerMax-Pro RS 2K HP Fast Power Sensor Description：

Datasheet User's Manual

This PowerMax-Pro RS 2K HP sensor incorporates a fast thin-film detector technology that responds in tens of microseconds. This model incorporates a ZnSe diffuser to enable higher powers and can handle up to 350W average power with water-cooling, 22W average power air-cooled, and up to 2 kW peak power for durations less than 100 milliseconds for measurement of short laser bursts without water cooling.

The sensor is terminated in a USB cable for directly interfacing with a PC. A DB25 model (PN 1286588) is available.

Fast, thin-film transverse thermoelectric, water-cooled power sensor with diffuser for measuring lasers between 3W and 350W. Can handle up to 15 kW for durations less than 100 msec to enable rapid measurement of laser bursts without water cooling. Direct RS232 interface.

Key Features:

3 to 350W range

Up to 2 kW peak power

Fast thin-film detector

ZnSe diffuser to increase power handling

10 μsec rise time

25mm diameter maximum beam size

700 nm to 1070 nm; 10.6 μm spectral range

Water-cooled; (up to 22W air-cooled)

Direct RS232 interface

ISO 17025 accredited

Specifications
