Gentec-EO PRONTO-250-EZ-Y Portable Laser Power Meter Description：

Datasheet(CN) Datasheet(EN) User's Manual

Gentec-EO PRONTO-250-EZ-Y Portable Laser Power Meter for up to 250 W. Easy to clean. Includes 3 measurement modes : SSP, CWP and SSE.

INTUITIVE USER INTERFACE

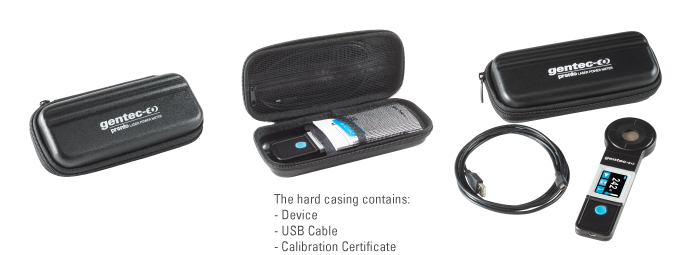

PROTECTIVE CASING INCLUDED

HANDS-FREE OPERATION

DATA TRANSFER TO PC

Leverage serial commands

Use our serial commands to communicate directly with the meter without using Gentec-EO's software. You can do so using a terminal emulator software, like PuTTY, or you can just integrate them directly into your own software. All essential functions of the meter are covered by a command. Refer to the user manual of the meter for the list of all commands available.

Build your own software

Suit your unique laser application requirements

Automate your measurements

Key Features

THE FLEXIBILITY TO PICK THE CALIBRATIONS YOU NEED

The PRONTO-250-EZ offers three calibration options so you only pay for what you need:

Default calibration “Y”: for visible to NIR wavelengths (248 nm to 2.5 μm)

Additional calibration “C”: for CO2 lasers (10.6 μm)

Additional calibration “E”: for energy measurements with ± 5 % accuracy

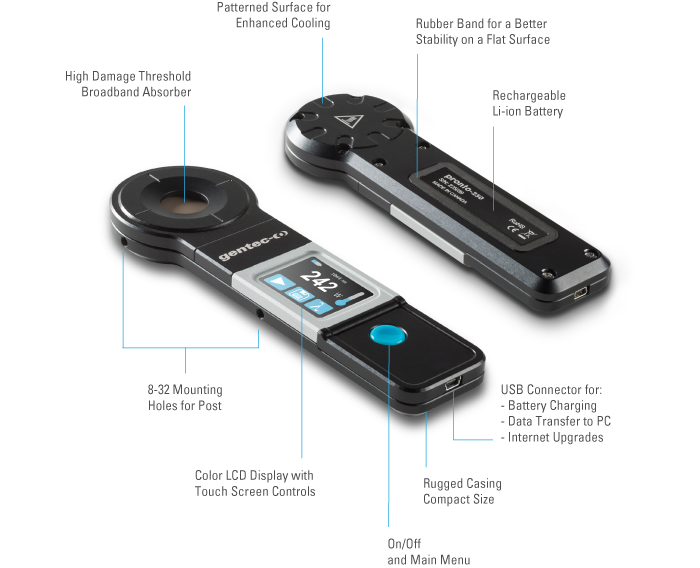

Pocket-Size

This mid to high power handheld probe is so compact it fits in your pocket!

Easy-to-Use

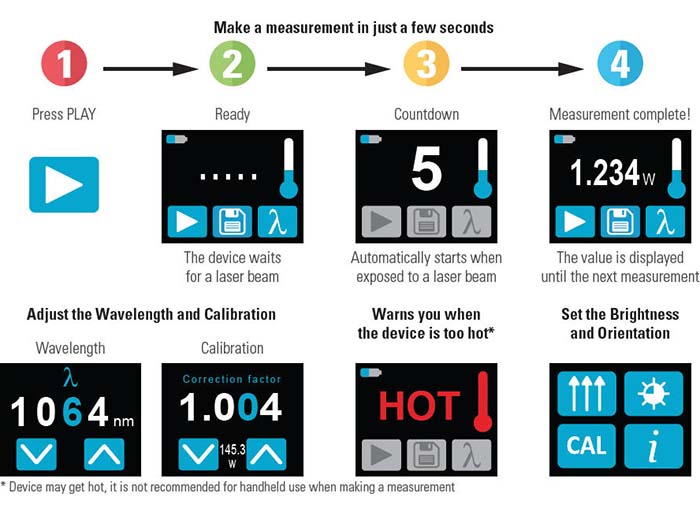

The touchscreen color LCD allows for a friendly user interface. You can make a measurement with just the touch of a button!

Data Logging

Save your data to the internal memory and then transfer it to your PC over the USB connection.

From Low to High Powers

Thanks to a low noise level and high damage threshold, the PRONTO-250-FLEX can measure powers from 0.5 W to 250 W.

Hands-Free Operation

Place it on a flat surface or use one of the 2 threaded holes that we have integrated in the casing for safe use with optical stands.

SERIAL COMMANDS

Serial commands are available to let you take full control of your PRONTO from your PC.

Specifications
