Gentec-EO PRONTO-10K Portable Laser Power Meter Description：

Datasheet(CN) Datasheet(EN) User's Manual

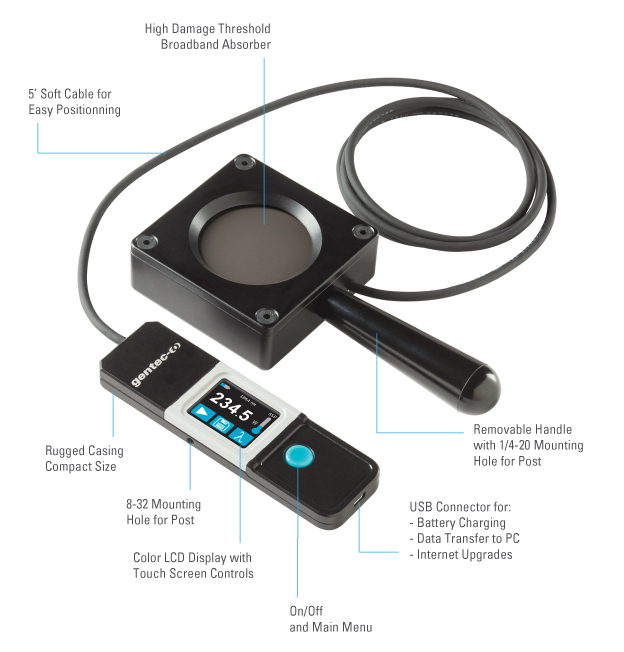

Gentec-EO PRONTO-10K Portable laser power meter for up to 10000 W.

Versatile absorber suitable for most applications

Our H absorber offers a spectral response that is both broadband and spectrally flat, making this power detector a versatile solution that can cover most laser power measurement needs. Our proprietary manufacturing method also gives this absorber good damage thresholds, for both average power density and energy density. It has a high absorption capacity and, therefore, generates a relatively low percentage of back reflection.

Useful for measuring a wide range of lasers

Low risk of damaging the equipment

Allows fast rise time

Leverage serial commands

Use our serial commands to communicate directly with the meter without using Gentec-EO's software. You can do so using a terminal emulator software, like PuTTY, or you can just integrate them directly into your own software. All essential functions of the meter are covered by a command. Refer to the user manual of the meter for the list of all commands available.

Build your own software

Suit your unique laser application requirements

Automate your measurements

FEATURES

Key Features

The PRONTO series for high power replaces the FLASH series that is now discontinued. The PRONTO models offer the same laser measurement capabilities, but with new and improved electronics that allow for data logging, more calibration points and USB connection for data transfer and charging the battery.

Wide Power Range

Very low noise level = wide power range with just one device

No-Wait Measurements

5 seconds measurements allow for very short cooling time (all models except PRONTO-3K)

Easy Operation

Color touch screen display

Large Aperture

55 mm aperture to accommodate large beams

Rugged

All-metal body

High damage thresholds

Advanced Features

Data logging and data transfer to PC

Specifications
