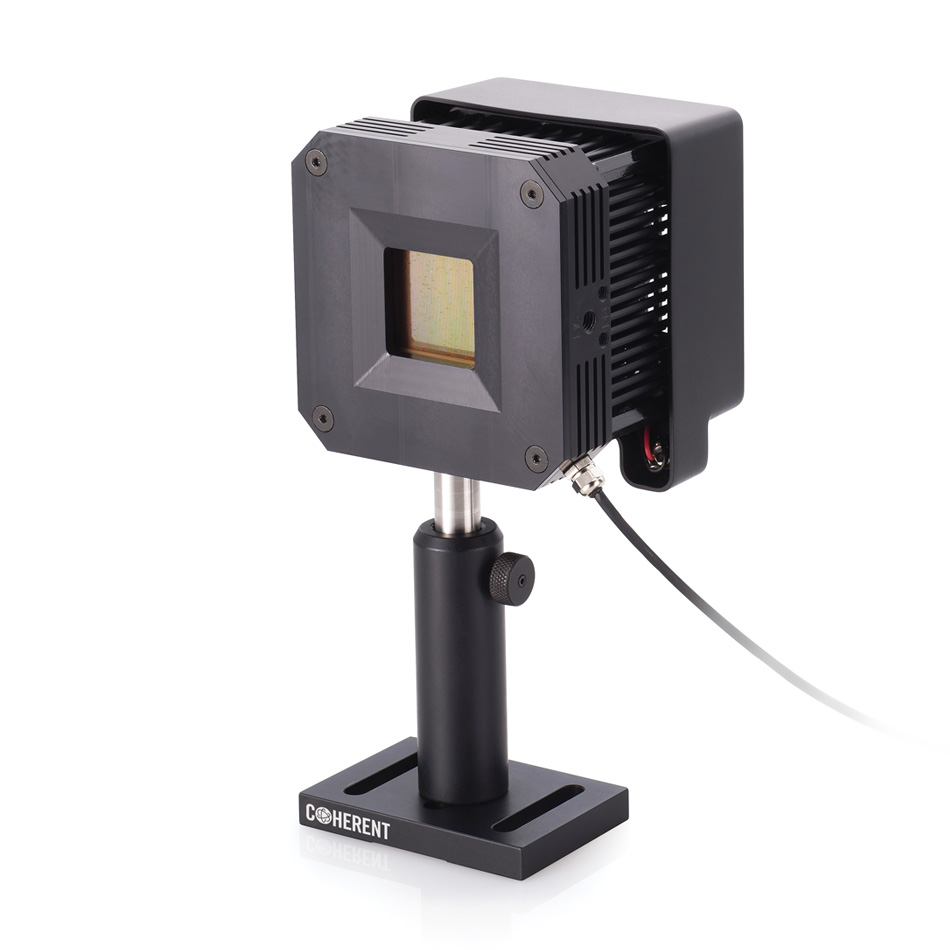

Coherent PMP USB 150F HD Fast Power Sensor

Updated:2025-03-13

Brand: Coherent
Model: PMP USB 150F HD
Description: This PowerMax-Pro USB 150 HD sensor incorporates a fast thin-film detector technology that responds in tens of microseconds. This model is the fastest option in the PowerMax-Pro line and is intended f
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent PMP USB 150F HD Fast Power Sensor Description：

Datasheet User's manual

This PowerMax-Pro USB 150 HD sensor incorporates a fast thin-film detector technology that responds in tens of microseconds. This model is the fastest option in the PowerMax-Pro line and is intended for measuring lasers up to 150W. The 150F model designator represents a fan-cooled model.

The sensor is terminated in a USB cable for directly interfacing with a PC. A DB25 model (PN 1266708) is available.

Fast, thin-film transverse thermoelectric, fan-cooled power sensor for measuring lasers between 200 mW and 150W. Direct USB interface.

Key Features:

200 mW to 150W range

Fast thin-film detector

10 μsec rise time

30x30 mm active area

Fan-cooled

400 nm to 1100 nm; 9 μm to 11 μm spectral range

Direct USB interface

ISO 17025 accredited

Specifications

Cable Type

USB

Cooling Type

Fan

Active Area Size

30 x 30 mm

Detector Coating

Power Range for Continuous Usage Air Cooled

200 mW to 150W

Power Range for Continuous Usage Water-cooled

Not applicable

Wavelength Range

400 nm to 1100 nm; 9 μm to 11 μm

Max Peak Power (for modulated lasers)

200W (> 1 μsec pulses)

Maximum Intermittent Power (watts) (air-cooled <5 minutes)

150

Noise Equivalent Power (milliwatts) Standard Mode

Noise Equivalent Power (milliwatts) High Speed Mode

Noise Equivalent Power (milliwatts) Snapshot Mode

Maximum Power Density (kilowatts per square centimeter)

0.2 (at 150W)

Max. Peak Power Density (kilowatts per square centimeter)

Rise Time (microseconds)

≤10

Minimum Beam Size (millimeters)

2.0 (1.0 mm - up to 3% error)

Calibration Uncertainty (%)(k=2)

±2

Power Linearity (%)

±5

Spectral Compensation Accuracy (%)

±3

Calibration Wavelength (nanometers)

801

Cable Length (meters)

4.2m (13.8 ft.)

Spatial Uniformity (%)(center 75% of aperature; 2.5 millimeter beam)

±5

Max. Energy Density

33 (10 ns; 1064 nm)
