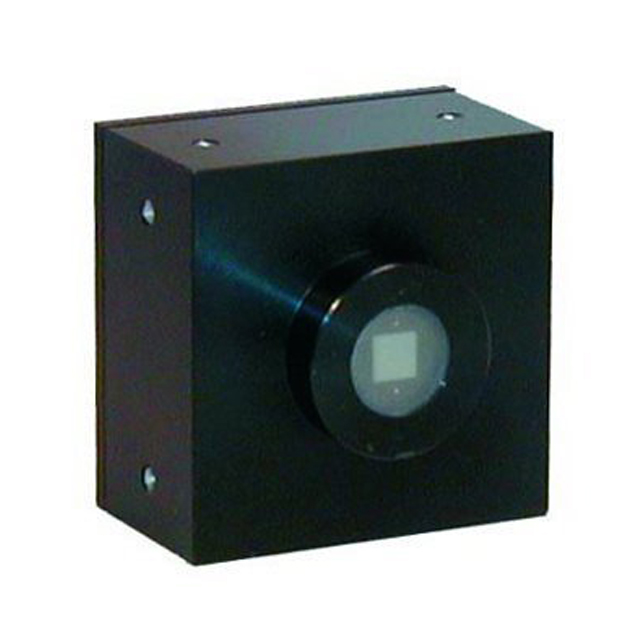

The PD300-UAS is a very compact OEM photodiode laser power sensor with built in electronics and dimensions only 38x38x32mm. It has a 10x10mm aperture and can measure from as low as 100pW up to 50mW depending on configuration. Its silicon detector can cover light sources from 200nm to 1100nm.
PD300-UAS Drawing
| Aperture | 10x10mm |
| Spectral Range | 0.2 – 1.1μm |
| Power Range | 100pW-50mW |
| Energy Range | N.A |
| Dimensions | 38 L x 38 W x 32 D (mm) |
| Max Average Power Density | ~ 50W/cm2 |
| Response Time | 0.2 s |
| Max Energy Density(for <100ns) | N.A |
| Max Energy Density(for 2ms) | N.A |
| Max Average Power | Up to 50mW |
| Communication | RS232, Analog |
