The PD10-pJ-C is a photodiode energy meter for very low energies with a 10mm aperture. It can measure energies from 10pJ up to 180nJ. It can operate at repetition rates up to 20kHz and covers the spectral range from 0.2 - 1.1μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

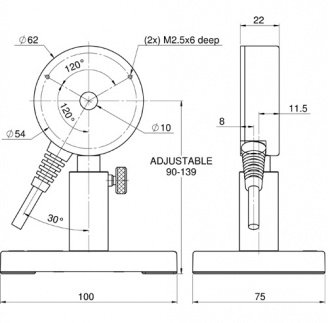

PD10-pJ-C Drawing
| Aperture | ?10mm |
| Spectral Range | 0.2-1.1μm |
| Energy Range | 10pJ-180nJ |
| Maximum Frequency | 20,000Hz |
| Dimensions | ?62 W x 22 D (mm) |
| Max Pulse Energy | 180nJ |
| Max Average Power Density | 5W/cm2 |
| Max Pulse Width | 0.005 ms |
| Max Average Power | 0.5mW |
