IMI ONYX-NX10 Description：

Product Manual Datasheet

ONYX features a modern, streamlined look and the use of advanced technologies, making it a one-of-a-kind Geiger Counter. It weighs only 7 oz. (200g.) and measures a mere 5.1 X 2.6 X 0.9 in. (72 X 37 X 13 mm.) making it easy to transport. Despite its compact size ONYX is capable of detecting alpha, beta and gamma radiation with the same sensitivity as the IMI Inspector Alert?, and like the IMI Inspector Alert? V2, ONYX is optimized for surface contamination measurements through use of its 2 in. pancake Geiger Mueller tube.

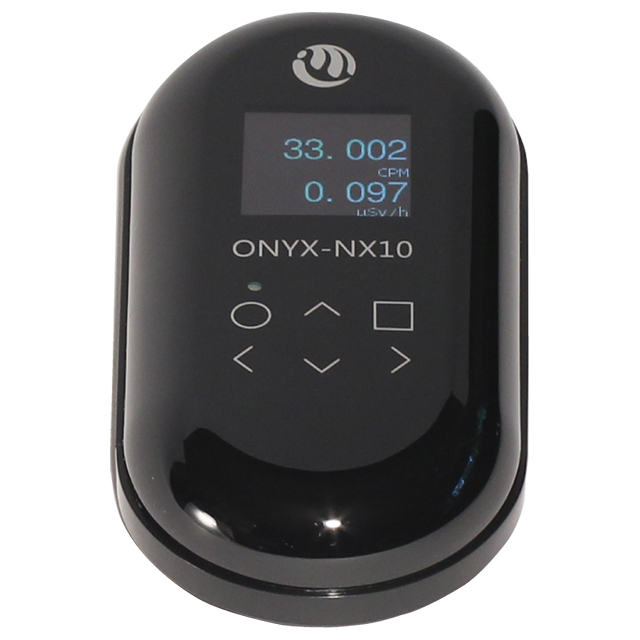

Data are easy to read in a variety of formats ( μR/hr per hour, Counts Per Minute, μSv/h and Total Counts – with Timer) on the 128 X 128 color OLED display that measures 1.88 in. (47.9mm.) diagonally. In addition, ONYX is designed to share data through its micro-USB port. Twitter data are transferred using QR code displayed on the OLED in combination with a smart phone with a QR Code scanner.

The ONYX has a six button touch sensitive keypad that allows for easy use of a wide variety of functions such as graphic display of data, adjustment of audio chirp, data logging, changing units of measurement and calibration. ONYX also permits the user to upgrade the software running on the device to the latest version using a simple internet download feature. The version being shipped with the instrument is the most up to date.

Smallest radiation detector in its class

Detects Alpha, Beta, Gamma and X-radiation

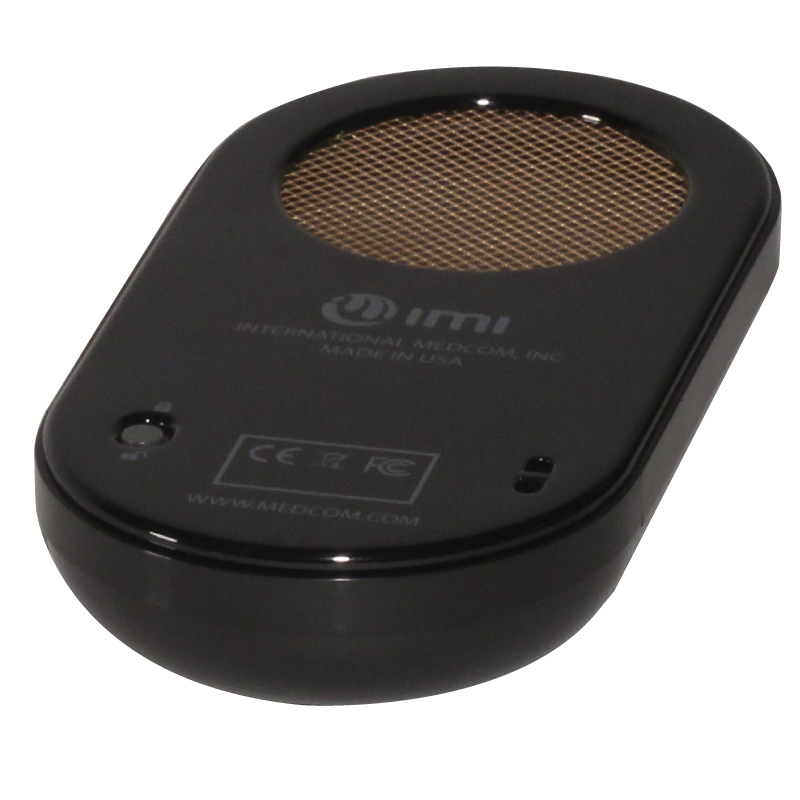

Pancake detector for surface contamination

Can be used for general survey applications

Stores and shares data rapidly

Specifications

Detector: Halogen-quenched Geiger-Mueller tube. Effective diameter 1.75″ (45 mm). Mica window density 1.5-2.0 mg/cm2; Detects Alpha, Beta, Gamma, and X-radiation

Display: 128×128 color OLED (Organic Light Emitting Diode)

Operating Range: μSv/hr: .000 to 1,000::: μR/hr: .000 to 100,000 ::: CPM: 0 to 350,000

Accuracy: ± 10% typical; ±15% maximum

Alert Range: 0 to 99,999 CPM; Beeper sounds the alert when warning level feature is activated

Anti-Saturation: Readout holds at full scale in fields up to 100 times the maximum reading

Audio: Beeper chirps with each count when Geiger Beep function is activated

Averaging: Accumulate/Average feature builds average over time when activated

Certifications: CE Certified: Emissions: EN 55011:2009 + A1:2010 (Class B emissions limits); EN 61000-4-2:1995 (ESD); EN61000-4-3:1997. RoHS Compliant, Meets WEEE standards

Count Light: Red LED flashes with each count

Calibration: Cesium-137 (gamma from daughter metastable Barium)

Gamma Sensitivity: 334 CPM per μSv/hr (3340 CPM per mR/hr) referenced to Cs-137

Efficiency: For 4 pi at contact

Beta C-14 (49 keV avg. 156 keV max.): 5.3% Bi-210 (390 keV avg. 1.2 MeV max.): 32% Sr-90 (546 keV and 2.3 MeV): 38% P-32 (693 keV avg. 1.7 MeV max.): 33%

Alpha Am-241 (5.5 MeV): 18%

I-125:  Smallest detectable level for I-125 is .02 mCi at contact

Manual: ONYX Operation Manual

Options: USB cable, charger and carrying case available

Ports: Output: Stereo 3.5 mm jack sends pulses to headset or external data collection devices

Power: One 3.7 V Lithium Ion battery

Size: 130 x 660 x 230 mm (5.1 x 2.6 x 0.9 inches)

Temperature Range: -20o to +50o C , -4o to +122o F

Timer: Can set sampling periods of 1 minute to 40 hours.

Weight: 200 grams (7 oz) including battery
