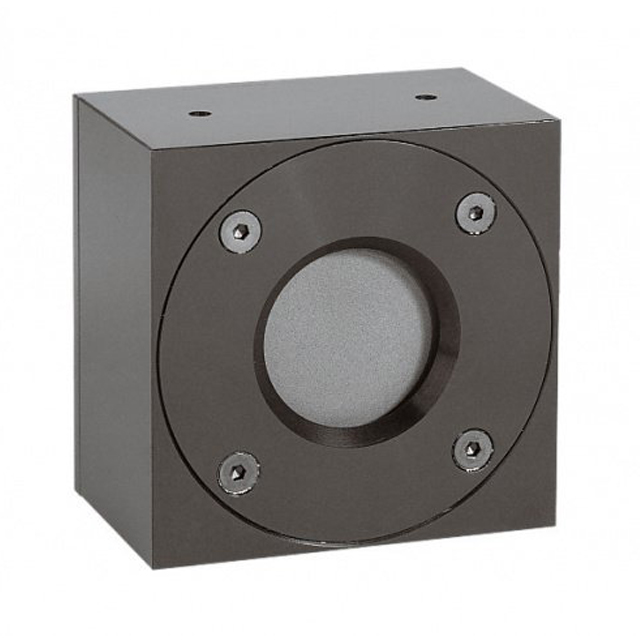

The L30C-UAE is a compact OEM thermal power/energy laser sensor. It has a 26mm aperture measures from 300mW to 10W free standing and to 100W when mounted to heat sink. It can measure energy from 30mJ to 100J. It has the spectrally flat broadband coating and covers the spectral range from 0.19 to 20μm. It has Ethernet output.
L30C-UAE Drawing
| Aperture | ?26mm |
| Spectral Range | 0.19-20μm |
| Power Range | 300mW-100W |
| Energy Range | 30mJ-100J |
| Dimensions | 60 L x 60 W x 38 D (mm) |
| Max Average Power Density | 14kW/cm2 at 100 W |
| Response Time | 1.5 s |
| Max Energy Density(for <100ns) | 0.3J/cm2 |
| Max Energy Density(for 2ms) | 10J/cm2 |
| Max Average Power | 100W heat sinked |
| Communication | Ethernet |
