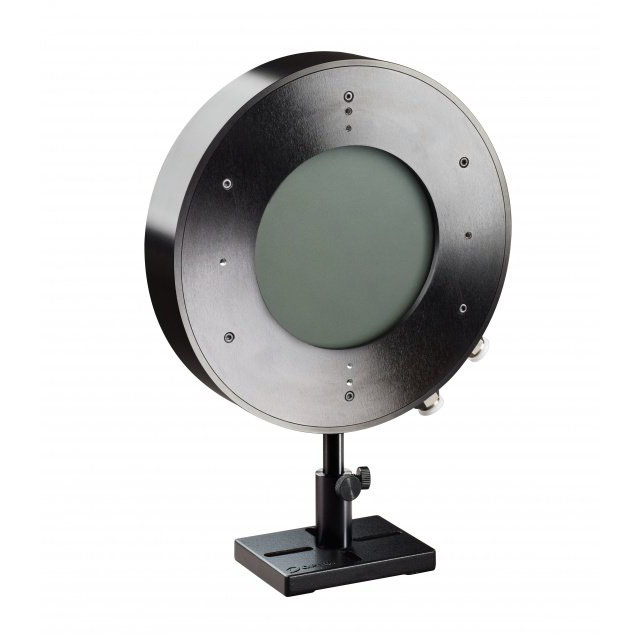

The L2000W-PF-120 is a water cooled thermal power/energy laser measurement sensor for high energy density and short pulses, with the very large aperture of 120mm.
It can measure power from 1W to 2000W and energy from 6J to 6000J. It has the PF volume absorber and covers the spectral range from 0.3 to 2.2μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.
L2000W-PF-120 Drawing
| Absorber Type | PF Type |
| Aperture | ?120mm |
| Spectral Range | 0.3-2.2μm |
| Power Range | 1W-2000W |
| Energy Range | 6J-6000J |
| Backscattered Power | N.A. |
| Dimensions | ?220 W x 42 D (mm) |
| Max Pulse Energy | 6000J |
| Max Average Power Density | 60W/cm2 |
| Response Time | 7 s |
| Max Energy Density (for <100ns) | 1.5J/cm2 |
| Max Energy Density (for 2ms) | 15J/cm2 |
| Max Average Power | 2000W |
| BeamTrack Functions | N.A. |
| Compliance | CE, China RoHS |
