Datasheet

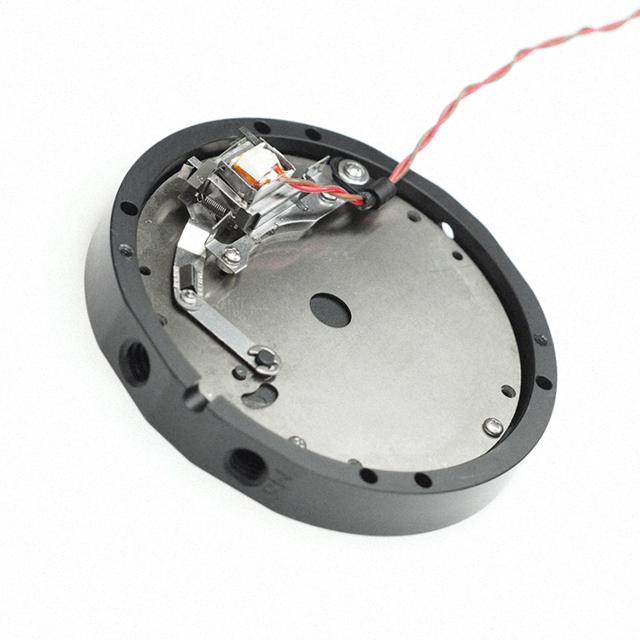

The Uniblitz FS series shutters are designed and optimized to operate directly from +5VDC and do not require a separate driver. Removing the +5VDC (0VDC) closes these shutters. A simple control circuit can be used to operate these shutter devices from a TTL trigger pulse. This control can be also accomplished with our VLM1 interface module. This low-cost innovation provides the reliability of Uniblitz shutters (typical lifetime >1 Million cycles) at a single operating voltage.
Key Features
6mm aperture
Slim, small form-factor
RoHS Compliant
Transfer time on opening: 3.3 milliseconds
Transfer time on closing: 6.0 milliseconds
Default closed operation, +5VDC opens the shutter, 0VDC closes the shutter
Device operating temperature range: -40°C to +65°C
Electronic synchronization available
Black anodized aluminum mount (included) provides multiple mounting options
Multiple housing options available
