The FL600A-LP2-65 is a fan cooled thermal power/energy laser measurement sensor for high power density and long pulse lasers. It has a 65mm aperture and can measure power from 5W to 600W and energy from 600mJ to 600J. Its high damage threshold LP2 absorber covers the spectral range from 0.35 to 2.2μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

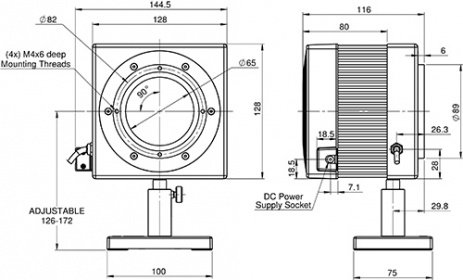

FL600A-LP2-65 Drawing
| Absorber Type | LP2 |
| Aperture | ?65mm |
| Spectral Range | 0.35 - 2.2μm |
| Power Range | 5W-600W |
| Energy Range | 600mJ-600J |
| Backscattered Power | N.A. |
| Dimensions | 128 L x 128 W x 116 D (mm) |
| Max Pulse Energy | 600J |
| Max Average Power Density | 11kW/cm2 |
| Response Time | 4 s |
| Max Energy Density (for <100ns) | 0.1J/cm2 |
| Max Energy Density (for 2ms) | 130J/cm2 |
| Max Average Power | 600W |
| BeamTrack Functions | N.A. |
