Datasheet User's Manual

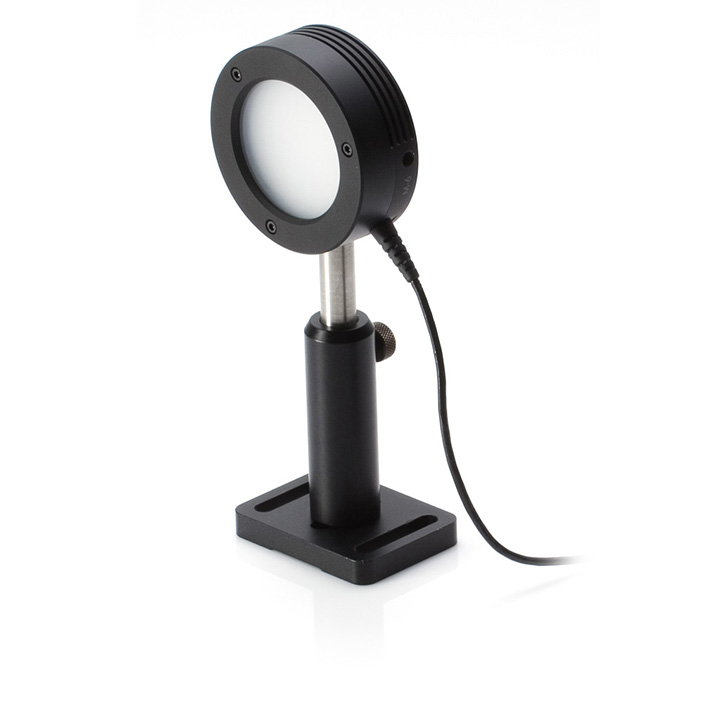

The EnergyMax-RS J-50MT-10KHZ energy sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. Power must be provided via a 5VDC power supply (optional PN 1105557) or via Pin 1. A DB25 model (PN 1110574) is available.
A large heatsink (PN 1123432) is available to extend the energy and repetition rates of EnergyMax sensors by increasing the average power capability.
Pyroelectric energy sensor with MaxBlack coating for measuring laser pulses from 400 μJ - 1J at up to 10000 pps. Direct RS232 interface.
Key Features:
190 nm to 2.1 μm spectral range
50mm diameter active area
400 μJ - 1J energy range
10000 pps repetition rate operation
Direct RS232 interface
ISO 17025 accredited
Specifications
