User 's Manual

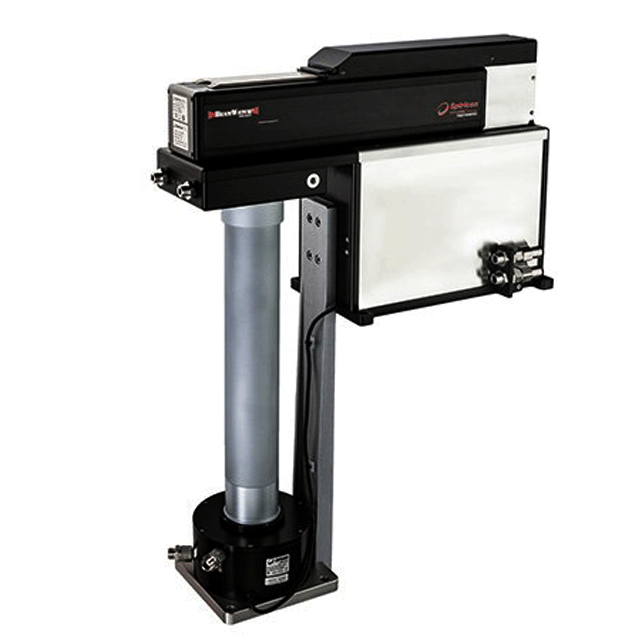

Automatically measure laser power, caustic and focus shift in real time
Support single-mode lasers
Fully automated operation
Trend analysis with good/bad signal
Detailed report with time stamp
Ability to work with different types of welding heads w/o changes to the measurement system
Rugged for industrial production environment
Short measurement time for frequent measurements during shift operation
Short measurement time for frequent measurements during shift operation
| Wavelengths | 980-1080 nm |
| Power Range | 500 W – 9999 W (up to 30 kW on request) |
| Beam Profiling | ISO 11146 Measurements |
| Power Meter | NIST traceable calibration ±3 % |
| Max Beam Diameter at Entrance/Exit | 12.5 mm |
| Interface | GigE, PROFINET, EtherNet/IP, CC-Link |
| Compliance | CE, UKCA, China RoHS |
