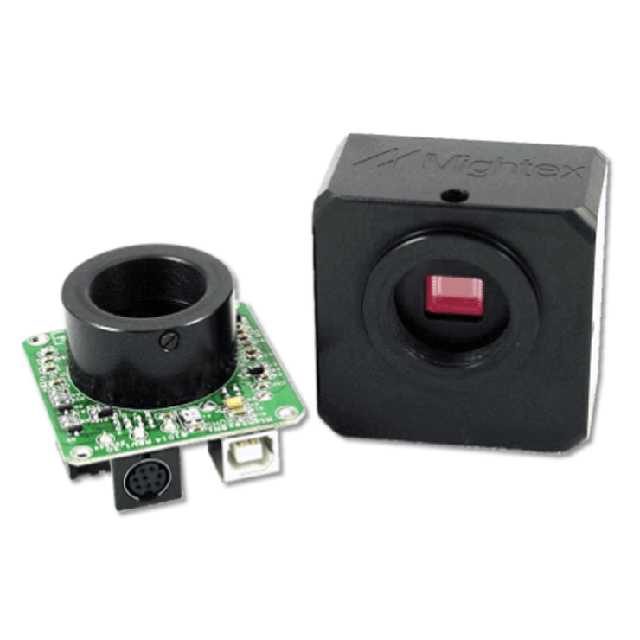

5MP Color CMOS Cameras, with 32MB on-Board Memory

Updated:2025-03-13

Brand: Mightex
Model: BCN-C050-U, BCE-C050-U
Description: Mightex USB 2.0 cameras with frame buffers are optimized for machine-vision applications, and they can also be used for a wide variety of other applications such as digital microscopy and medical imag
Data download

Feedback
WeChat

QQ

Online Service

Product Details

5MP Color CMOS Cameras, with 32MB on-Board Memory Description：

Datasheet

Mightex USB 2.0 cameras with frame buffers are optimized for machine-vision applications, and they can also be used for a wide variety of other applications such as digital microscopy and medical imaging, where quality, ease of use, and cost-effectiveness are crucial. These cameras have built-in frame buffers, external trigger-in, strobe-out, and a powerful camera engine that supports multiple cameras. The frame rate can be as high as 6 fps in full resolution and up to 300 fps using ROI mode. In addition, a user-friendly GUI based application software and an SDK are provided for custom software development. A DirectShow driver and a TWAIN driver are included, and a USB command set protocol is provided for non-Windows based applications. A Linux Driver is also available upon request.

Features

32MB on-board memory (3 frames at full resolution)

Support simultaneous image capturing from multiple cameras

4-pin GPIOs

2592 x 1944active imaging pixels

Ultra compact

High-speed USB2.0 (480Mb/s)

Digital output, no need for frame grabber

Custom programmable with SDK provided

DirectShow driver

TWAIN driver

USB command set protocol for non-Windows-based applications

External and software trigger

Strobe output for external flash

ROI & pixel skipping/binning

No need for external power supply

OEM versions available

Applications

Machine vision and stereo vision

Medical imaging

Semiconductor equipment

Test instruments

High-quality ID photo capture

Document scanners

Digital microscopy

Web camera and security video

Specifications

Parameters	BCN-C050-U	BCE-C050-U	Unit
Board-Level/Enclosed	Board-Level	Enclosed
Number of GPIOs	4	4
Resolution	2,592 x 1,944 Color
CMOS Chip	1/2.5" (5:4) Micron MT9P031, Rolling Shutter
Pixel Size	2.2 x 2.2		μm
Scanning System	Progressive
Dynamic Range	70		dB
Sensor SNR	38		dB
Gray Level	8		bit
Responsivity	1.4		V/lux-sec
On-Board Memory	32		MB
Frame Rates* (@48MHz Clock)	6 @2592 x 1944, 9 @2048 x 1536 13 @1600 x 1200 18 @1280 x 1024 28 @1024 x 768 40 @800 x 600 50 @752 x 480 56 @640 x 480 100 @320 x 240		fps
Sub Resolutions	Support Arbitrary ROI, (X, Y) with X and Y multiples of 4
Shutter Speed (Exposure Time)	0.05 ~ 750		ms
Hardware Gains	1x ~ 16x
Trigger Mode	With external trigger
Trigger Cable	ACC-CAM-DIN8
Strobe Out	Yes
Lens Mount	C– mount or CS-mount (M12.5-mount or custom-defined lens mount supported)
Built-in Filters	IR-cut (factory standard) or custom
Power Consumption	< 1.8		W
Dimension	51 x 51 x 29 (CS-mount) 51 x 51 x 34 (C-mount)	58 x 58 x 34 (CS-mount) 58 x 58 x 39 (C-mount)	mm
Weight (excluding lens)	80	150	g
