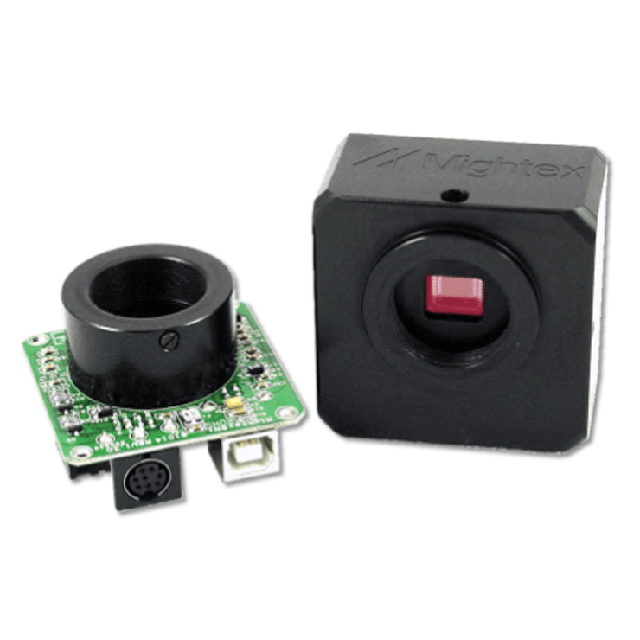

3MP Color CMOS Cameras, with 32MB on-Board Memory

Updated:2025-03-13

Brand: Mightex
Model: BCN-C030-U, BCE-C030-U
Description: Mightex USB 2.0 cameras with frame buffers are optimized for machine-vision applications, and they can also be used for a wide variety of other applications such as digital microscopy and medical imag
Data download

Feedback
WeChat

QQ

Online Service

Product Details

3MP Color CMOS Cameras, with 32MB on-Board Memory Description：

Datasheet

Mightex USB 2.0 cameras with frame buffers are optimized for machine-vision applications, and they can also be used for a wide variety of other applications such as digital microscopy and medical imaging, where quality, ease of use, and cost-effectiveness are crucial. These cameras have built-in frame buffers, external trigger-in, strobe-out, and a powerful camera engine that supports multiple cameras. The frame rate can be as high as 8 fps in full resolution and up to 300 fps using ROI mode. In addition, a user-friendly GUI based application software and an SDK are provided for custom software development. A DirectShow driver and a TWAIN driver are included, and a USB command set protocol is provided for non-Windows based applications. A Linux Driver is also available upon request.

Features:

32MB on-board memory (7 frames at full resolution)

Support simultaneous image capturing from multiple cameras

4-pin GPIOs

2,048 x 1,536 active imaging pixels

Ultra compact

High-speed USB2.0 (480Mb/s)

Digital output, no need for frame grabber

Custom programmable with SDK provided

DirectShow driver

TWAIN driver

USB command set protocol for non-Windows-based applications

External and software trigger

Strobe output for external flash

ROI & pixel skipping/binning

No need for external power supply

OEM versions available

Applications:

Machine vision and stereo vision

Medical imaging

Semiconductor equipment

Test instruments

High-quality ID photo capture

Document scanners

Digital microscopy

Web camera and security video

Specifications

Parameters	BCN-C030-U (C-mount) BCN-C030-US (CS-mount)	BCE-C030-U (C-mount) BCE-C030-US (CS-mount)	Unit
Board-Level/Enclosed	Board-Level	Enclosed
Number of GPIOs	4	4
Resolution	2,048 x 1,536 Color
CMOS Chip	?" (5:4) Micron MT9T001, Rolling Shutter
Pixel Size	3.2 x 3.2		μm
Scanning System	Progressive
Dynamic Range	61		dB
Sensor SNR	43		dB
Gray Level	8		bit
Responsivity	2.1		V/lux-sec
On-Board Memory	32		MB
Frame Rates* (@48MHz Clock)	11 @2048x1536 16 @1600x1200 28 @1280x1024 42 @1024x768 64 @800x600 82 @752x480 90 @640x480 240 @320x240		fps
Sub Resolutions	Support Arbitrary ROI, (X, Y) with X and Y multiples of 4
Shutter Speed (Exposure Time)	0.05 ~ 750		ms
Hardware Gains	0.125x ~ 8x
Trigger Mode	With external trigger
Trigger Cable	ACC-CAM-DIN8
Strobe Out	Yes
Lens Mount	C– mount or CS-mount (M12.5-mount or custom-defined lens mount supported)
Built-in Filters	IR-cut (factory standard), or IR-pas, or no filter
Power Consumption	< 1.8		W
Dimension	51 x 51 x 29 (CS-mount) 51 x 51 x 34 (C-mount)	58 x 58 x 34 (CS-mount) 58 x 58 x 39 (C-mount)	mm
Weight (excluding lens)	80	150	g
