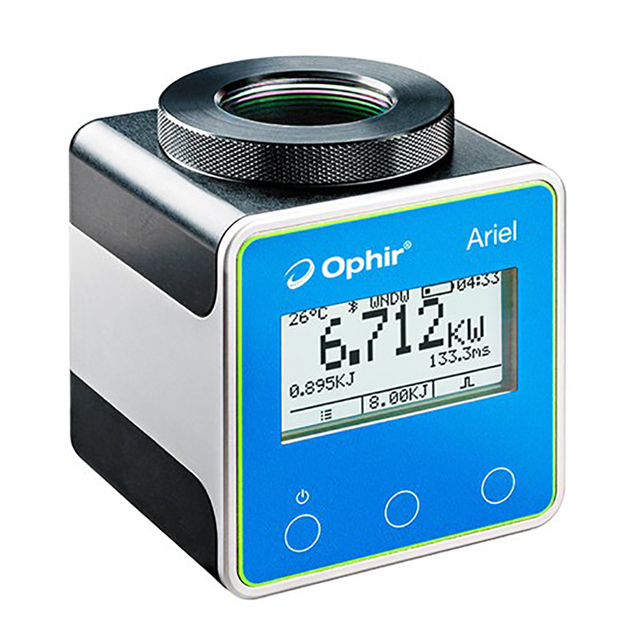

Ariel 7Z02798 Sensor Description:

In ‘power-from-pulse’ mode, the Ariel measures high power industrial lasers of up to 8kW by measuring the energy of a short exposure to this power. The laser is set to deliver a pulse of from 0.05 to several seconds. The Ariel then measures the energy and duration of the laser pulse and calculates the power. In continuous mode, the Ariel measures up to 500W for as long as 20s, or up to 30W continuously. The Ariel is ideal for usage in tight spaces such as additive manufacturing chambers as well as for production process quality control and R&D.

Measures up to 8000W

Compact and self-contained with built in display, battery, and Bluetooth communication

No Water Cooling

Dust proof, splash proof

Includes a detachable diffuser for high power density beams

Wavelengths: 440-550nm, 900-1100nm, 2.94μm, 10.6μm

High thermal capacity of 14KJ for uninterrupted consecutive measurements

Only 3 seconds to display measurement

Long battery life: more than 15 hours

Two measurement modes: short exposure ‘power-from-pulse’ and continuous

Supported by PC and iOS or Android applications

Ariel 7Z02798 Sensor Drawing：

Ariel Drawing

Ariel 7Z02798 Sensor Specification：
