ATMOS 41 All-in-one weather station

Updated:2025-03-13

Brand：METER
Model number：ATMOS 41
Description: At present, the sensors in most weather stations are independent, and the installation and maintenance costs are high. Wiring and programming are daunting for many people; And on a weather station bra
Data download

Feedback
WeChat

QQ

Online Service

Product Details

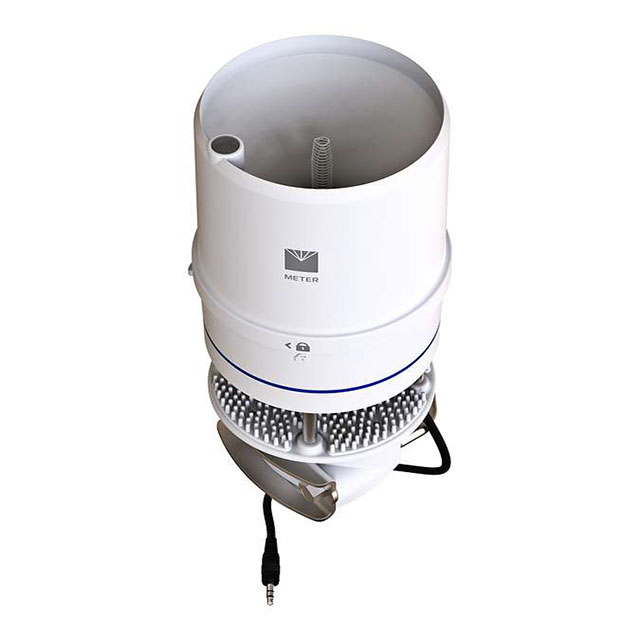

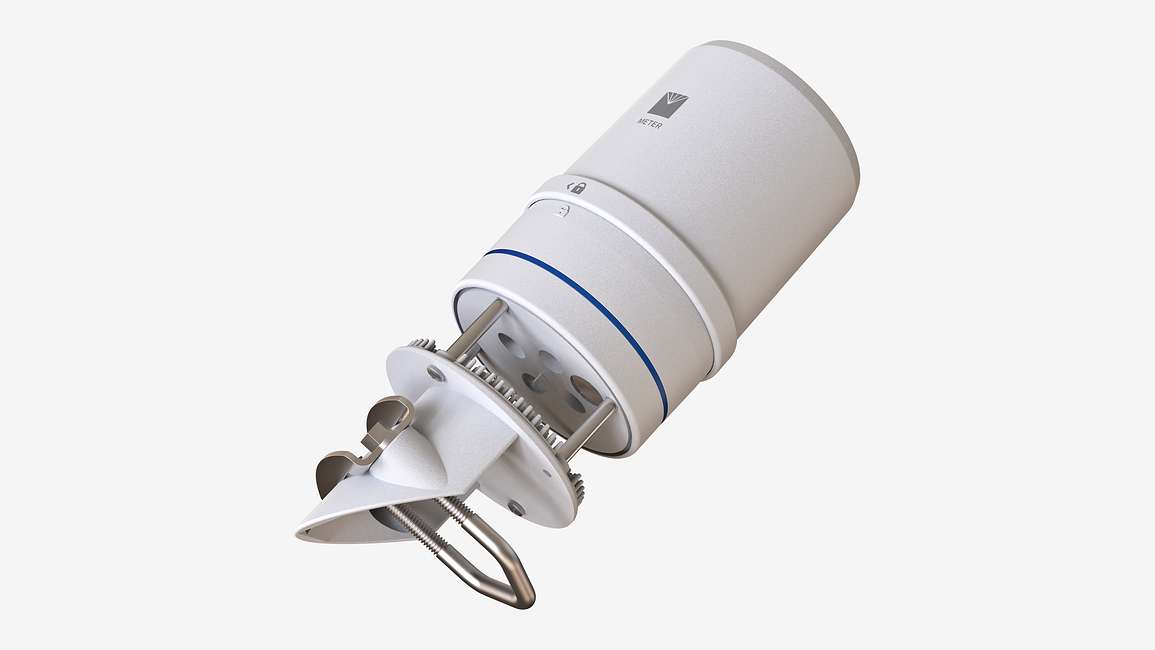

ATMOS 41 Introduction

At present, the sensors in most weather stations are independent, and the installation and maintenance costs are high. Wiring and programming are daunting for many people; And on a weather station bracket, determine the most for all the sensors. The best placement is also a matter of careful consideration.

The traditional integrated weather station solves the above problems. However, if one or more additional sensors are to be added to such an observation system, such as the measurement of moisture content in soil profiles, it is usually necessary to add additional data.

main feature

Multiple weather variables can be measured simultaneously, including: air temperature, relative humidity, water vapor pressure, atmospheric pressure, wind speed, wind direction, solar radiation, precipitation, lightning frequency and distance, etc
easy installation
Fewer ports are occupied, and all data is transmitted through only one cable
SDI-12 Digital communication
The integrated accelerometer detects if the sensor is out of level

technical specification

total solar radiation
Range	0 ~ 1750 W/m2
resolution ratio	1 W/m2
Accuracy	± 5%
rain
Range	0 ~ 400 mm/hr
resolution ratio	0.017 mm
Accuracy	± 5%
air temperature
Range	-50 ~ 60℃
resolution ratio	0.1℃
Accuracy	± 0.6℃
relative humidity
Range	0 ~ 100%
resolution ratio	0.1%
Accuracy	representative 3%
Water vapor pressure
Range	0 ~ 47 kPa
resolution ratio	0.01 kPa
Accuracy	Typical ± 0.2 kPa@ 40℃ below
atmospheric pressure
Range	50 ~ 110 kPa
resolution ratio	0.01 kPa
Accuracy	± 0.1 kPa@-10℃ ~ 50℃, ±0.5 kPa@-40℃ ~ 60℃
wind speed
Range	0.01 m/s
resolution ratio	0.01 m/s
Accuracy	Greater than 0.3m /s or 3% of the measured value
direction of the wind
Range	0 ~ 359。
resolution ratio	1。
Accuracy	± 5。
Count of lightning
Range	0 ~ 65535次
resolution ratio	1 次
Distance of lightning
Range	0 ~ 40 km
resolution ratio	3 km
Angle of Inclination
Range	-90。~ +90。
resolution ratio	0.1。
Accuracy	± 1。
other parameters
size	Diameter 10cm, height 34cm
cable	Standard with 5 meters, other lengths can be customized
data acquisition unit
model	TH302 etc.
