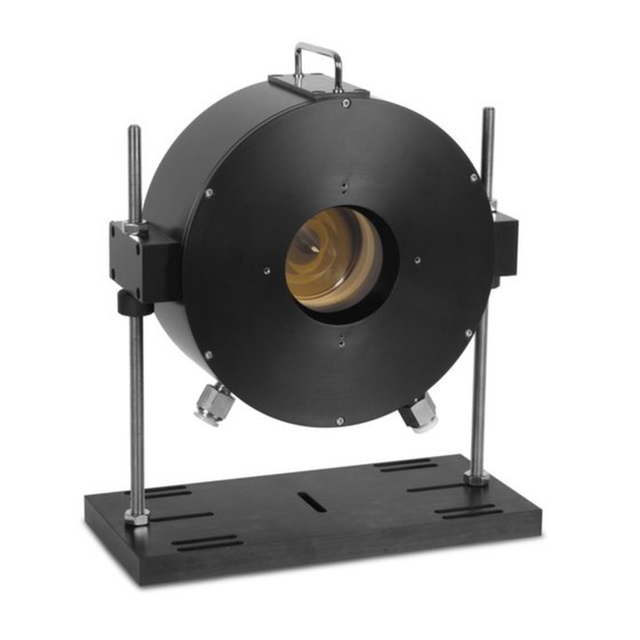

The 30K-W-BB-74 is a water cooled thermal power/energy laser measurement sensor for high powers with a 74mm aperture. It can measure power from 100W to 30,000W. It has a deflecting cone and annular absorber that withstands high power densities to 10kW/cm2. It covers the spectral range from 0.8 - 2 and 10.6μm. The sensor comes with a standard 10 meter cable for connecting to a meter or PC interface.
30K-W-BB-74 Drawing
| Absorber Type | Beam deflector + broadband absorber |
| Aperture | ?74mm |
| Spectral Range | 0.8-2μm, 10.6μm |
| Power Range | 100W-30,000W |
| Energy Range | N.A. |
| Backscattered Power | ~4.3% without Scatter Shield, ~1.3% with Scatter Shield |
| Dimensions | ?229 W x 100 D (mm) |
| Max Pulse Energy | N.A. |
| Max Average Power Density | 10kW/cm2 |
| Response Time | 7 s |
| Max Energy Density (for <100ns) | N.A. |
| Max Energy Density (for 2ms) | N.A. |
| Max Average Power | 30kW |
| BeamTrack Functions | N.A. |
