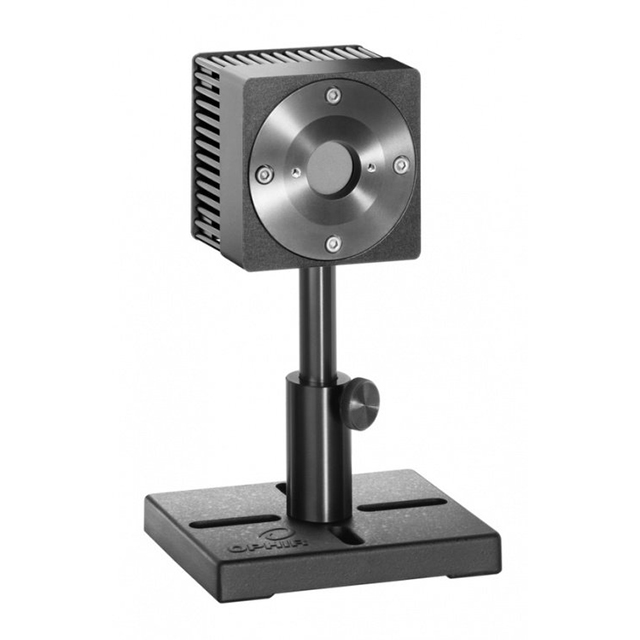

The 30A-N-18 is a thermal power/energy laser measurement sensor for high power density YAG lasers with an 17.5mm aperture. It can measure from 60mW to 30W and from 30mJ to 200J. It has the N type volume absorber and can measure 0.532 and 1.064μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

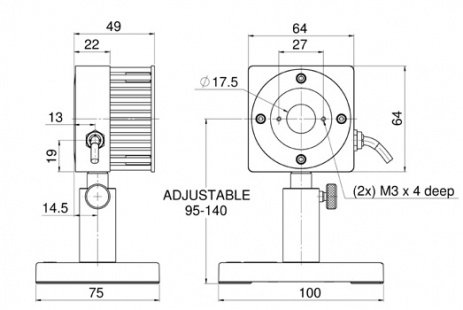

30A-N-18 Drawing
| Absorber Type | N type |
| Aperture | ?17.5mm |
| Spectral Range | 0.532, 1.064μm |
| Power Range | 60mW-30W |
| Energy Range | 30mJ-200J |
| Backscattered Power | N.A. |
| Dimensions | 64 L x 64 W x 49 D (mm) |
| Max Pulse Energy | 200J |
| Max Average Power Density | 5kW/cm2 |
| Response Time | 2 s |
| Max Energy Density (for <100ns) | 1J/cm2 |
| Max Energy Density (for 2ms) | 50J/cm2 |
| Max Average Power | 30W |
| BeamTrack Functions | N.A. |
