30(150)A-HE-17 P/N7Z02722 Laser Measurement Sensor

Updated:2025-03-13

Brand: Ophir
Model: 30(150)A-HE-17
Description: The 30(150)A-HE-17 is thermal power/energy laser measurement sensor with high damage threshold for pulsed lasers. It has a 17mm aperture and can measure from 50mW to 30W continuously and to 150W inter
Data download

Feedback
WeChat

QQ

Online Service

Product Details

30(150)A-HE-17 P/N7Z02722 Laser Measurement Sensor Introduction：

The 30(150)A-HE-17 is thermal power/energy laser measurement sensor with high damage threshold for pulsed lasers. It has a 17mm aperture and can measure from 50mW to 30W continuously and to 150W intermittently. It can measure energy from 60mJ to 200J. Its HE absorber has a damage threshold of up to 5J/cm2 and with some gaps covers the spectral range from 0.19 to 2.94μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

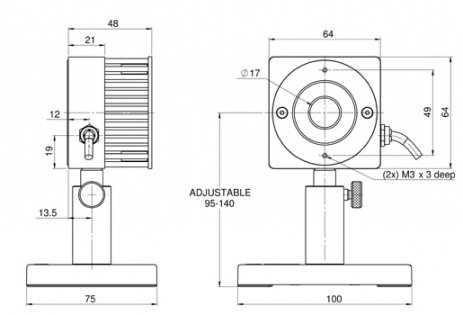

30(150)A-HE-17 P/N7Z02722 Laser Measurement Sensor Drawing：

30(150)A-HE-17 Drawing

30(150)A-HE-17 P/N7Z02722 Laser Measurement Sensor Specification：

Absorber Type	HE
Aperture	?17mm
Spectral Range	0.19-0.625μm, 1.064μm, 2.1μm, 2.94μm
Power Range	50mW-150W
Energy Range	60mJ-200J
Dimensions	64 L x 64 W x 48 D (mm)
Max Pulse Energy	200J
Max Average Power Density	0.5kW/cm2
Response Time	3.8 s
Max Energy Density (for <100ns)	2J/cm2
Max Energy Density (for 2ms)	40J/cm2
Max Average Power	150W
