The 150C-UAF is an OEM thermal power/energy laser measurement sensor with an 18mm aperture. It can measure from 60mW to 5W free standing and 60W when heat sinked. It can measure energy from 20mJ to 100J. It has the spectrally flat broadband coating covering the spectral range from 0.19 to 20μm. It has analog and RS232 output.

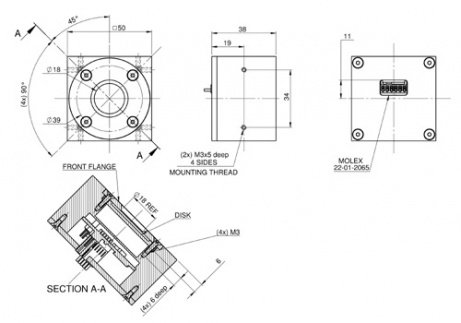

150C-UAF Drawing
| Aperture | ?18mm |
| Spectral Range | 0.19-20μm |
| Power Range | 60mW-150W |
| Energy Range | 20mJ-100J |
| Dimensions | 50 L x 50 W x 38 D (mm) |
| Max Average Power Density | 20kW/cm2 at 60W |
| Response Time | 1.2 s |
| Max Energy Density(for <100ns) | 0.3J/cm2 |
| Max Energy Density(for 2ms) | 10J/cm2 |
| Max Average Power | 150W for 1min free standing |
| Communication | RS232, Analog |
